FHR 1.000L Rotator for loads up to 1t

Max load static (tension loads) : 10 KN
Max load dynamic (tension loads) : 5 KN
Torque at 25MPa : 350 Nm
Weight : 11 Kg
Recommended oilflow : 10 l/min

Applications

  • For forestry
  • For agriculture and farming
  • For road and building construction

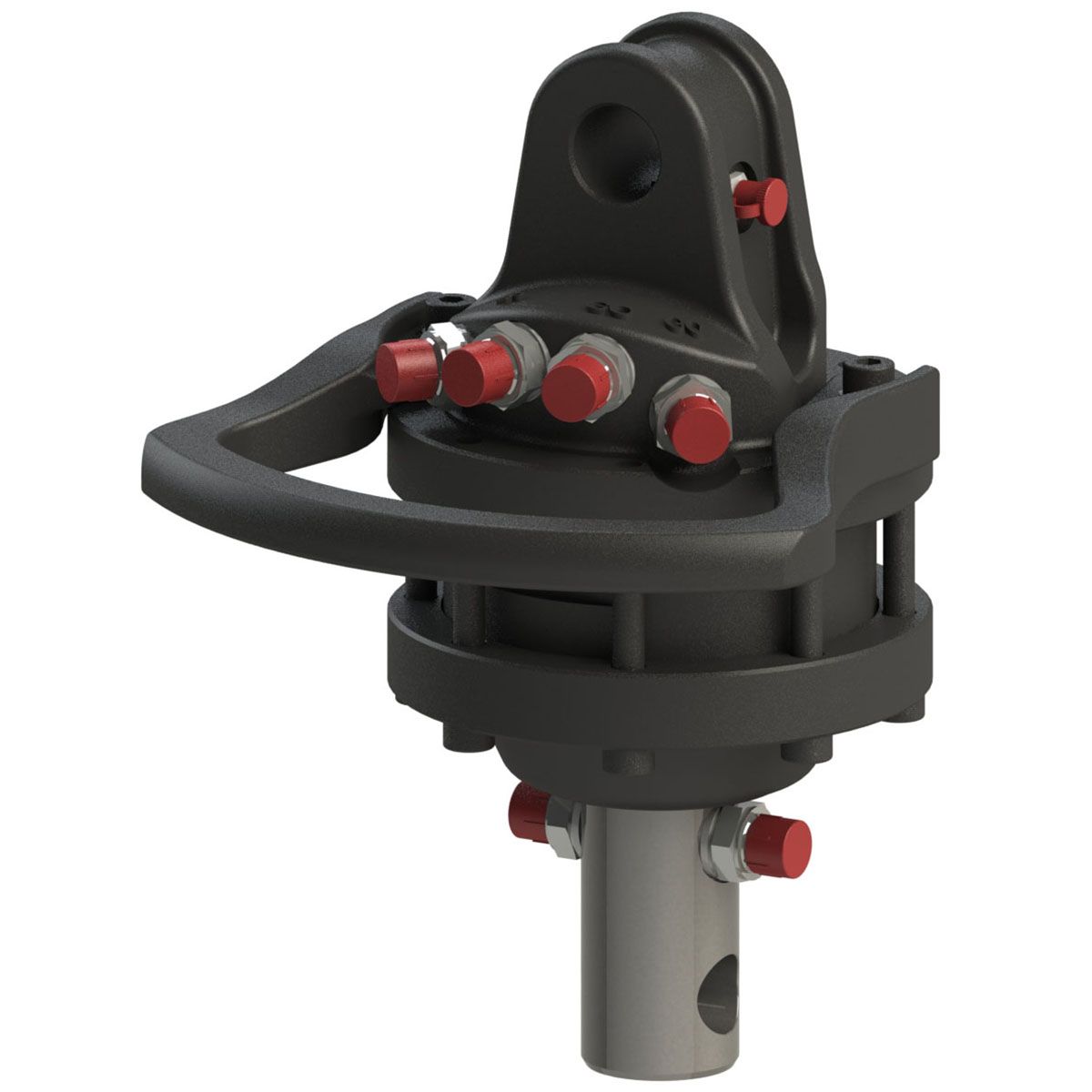

FHR 1.000L - Rotator for loads up to 1t

Download Data Sheet


Hydraulic rotator FHR 1.000L is cost-effective solution generally for seasonal use in forestry, agriculture, road and building construction, general cargo and material handling.

Rotator's upper mount is applied in EYE form factor of the knuckle joint. Robust and tough built to withstand even overloads. The wide of eye is common standard width 45mm and the knuckle pin diameter 25mm.
Rotator lower mount is applied in AXLE form factor to mount in grapple / tool mounting tube or addaptor and by fixing with pin. Axle (shaft) diameter is 39.5mm and the fixing pin (not included) diameter 20mm.
Rotator FHR 1.000L based on reliable vane type hydraulic motor which delivers torque up to 350Nm at 25MPa.
Formoko rotator FHR 1.000L is compatible with FHL 01-A/B-45/25 series links.
Rotator for shipping is packed in compact solid cardboard box with dimensions 280x180x180mm.
We providing TWO year warranty for this rotator.
