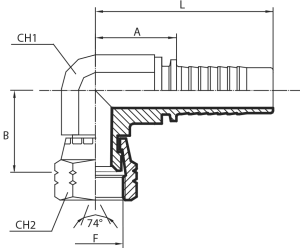

90° JIC Female compact elbow 60° cone
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| F90J0404K | 6 | 1/4" | 4 | 7/16" | 20 |
| F90J0406K | 6 | 1/4" | 4 | 9/16" | 18 |
| F90J0506K | |||||
| F90J0606K | 10 | 3/8" | 6 | 9/16" | 18 |
| F90J0608K | 10 | 3/8" | 6 | 3/4" | 16 |
| F90J0808K | 12 | 1/2" | 8 | 3/4" | 16 |
| F90J1212K | 20 | 3/4" | 12 | 1.1/16" | 12 |
| F90J1616K | 25 | 1" | 16 | 1.5/16" | 12 |
* The figures and technical data set out in the tables are only intended as approximations.
