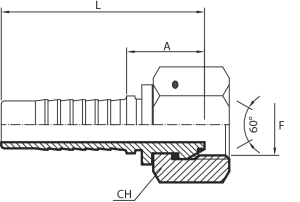

BSPP O-ring straight Female 60° cone (thrust-wire nut)


BSPP O-ring straight Female 60° cone (thrust-wire nut)
CODE DN INCHES DIAM D L
FDG0302SP 5 3/16" 3 1/8" 28
FDG0304SP 5 3/16" 3 1/4" 19
FDG0402SP 6 1/4" 4 1/8" 28
FDG0404SP 6 1/4" 4 1/4" 19
FDG0406SP 6 1/4" 4 3/8" 19
FDG0408SP 6 1/4" 4 1/2" 14
FDG0504SP 8 5/16" 5 1/4" 19
FDG0506SP 8 5/16" 5 3/8" 19
FDG0508SP 8 5/16" 5 1/2" 14
FDG0604SP 10 3/8" 6 1/4" 19
FDG0606SP 10 3/8" 6 3/8" 19
FDG0608SP 10 3/8" 6 1/2" 14
FDG0806SP 12 1/2" 8 3/8" 19
FDG0808SP 12 1/2" 8 1/2" 14
FDG0812SP 12 1/2" 8 3/4" 14
FDG1008SP 16 5/8" 10 1/2" 14
FDG1012SP 16 5/8" 10 3/4" 14
FDG1208SP 20 3/4" 12 1/2" 14
FDG1212SP 20 3/4" 12 3/4" 14
FDG1612SP 25 1" 16 3/4" 14
FDG1616SP 25 1" 16 1" 11
FDG1620SP 25 1" 16 1.1/4" 11
FDG2020SP 32 1.1/4" 20 1.1/4" 11
FDG2024SP 32 1.1/4" 20 1.1/2" 11
FDG2424SP 40 1.1/2" * 24 1.1/2" 11
FDG2432SP 40 1.1/2" 24 2" 11
FDG3232SP 50 2" 32 2" 11

* The figures and technical data set out in the tables are only intended as approximations.
