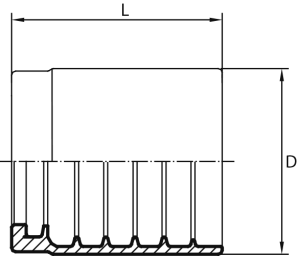

Ferrule for 1SN-2SN-2SC


Ferrule for 1SN-2SN-2SC
CODE DN INCHES DIAM D L
B12T03N 5 3/16" 3 21 23
B12T04N 6 1/4" 4 23 30
B12T05N 8 5/16" 5 24 30
B12T06N 10 3/8" 6 26 32
B12T08N 12 1/2" 8 29 34
B12T10N 16 5/8" 10 33 37
B12T12N 20 3/4" 12 37 42
B12T16N 25 1" 16 46 51
B12T20N 32 1.1/4" 20 59 59
B12T24N 40 1.1/2" 24 67 67
B12T32N 50 2" 32 80 72

* The figures and technical data set out in the tables are only intended as approximations.
