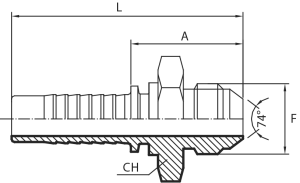

JIC Male 74° cone


JIC Male 74° cone
CODE DN INCHES DIAM D L
MJ0304 5 3/16" 3 7/16"
MJ0305 5 3/16" 3 1/2"
MJ0404 6 1/4" 4 7/16"
MJ0405 6 1/4" 4 1/2"
MJ0406 6 1/4" 4 9/16"
MJ0505 8 5/16" 5 1/2"
MJ0506 8 5/16" 5 9/16"
MJ0507 8 5/16" 5 5/8"
MJ0508 8 5/16" 5 3/4"
MJ0606 10 3/8" 6 9/16"
MJ0607 10 3/8" 6 5/8"
MJ0608 10 3/8" 6 3/4"
MJ0610 10 3/8" 6 7/8"
MJ0808 12 1/2" 8 3/4"
MJ0810 12 1/2" 8 7/8"
MJ0812 12 1/2" 8 1.1/16"
MJ1010 16 5/8" 10 7/8"
MJ1012 16 5/8" 10 1.1/16"
MJ1210 20 3/4" 12 7/8"
MJ1212 20 3/4" 12 1.1/16"
MJ1214 20 3/4" 12 1.3/16"
MJ1216 20 3/4" 12 1.5/16"
MJ1612 25 1" 16 1.1/16" 12
MJ1616 25 1" 16 1.5/16" 12
MJ1620 25 1" 16 1.5/8" 12
MJ2020 32 1.1/4" 20 1.5/8" 12
MJ2024 32 1.1/4" 20 1.7/8" 12
MJ2424 40 1.1/2" 24 1.7/8" 12
MJ3232 50 2" 32 2.1/2" 12

* The figures and technical data set out in the tables are only intended as approximations.
