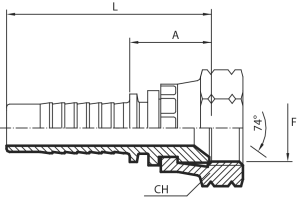

JIC straight Female 74° cone


JIC straight Female 74° cone
CODE DN INCHES DIAM D L
FDJ0304 5 3/16" 3 7/16" 20
FDJ0305 5 3/16" 3 1/2" 20
FDJ0404 6 1/4" 4 7/16" 20
FDJ0405 6 1/4" 4 1/2" 20
FDJ0406 6 1/4" 4 9/16" 18
FDJ0505 8 5/16" 5 1/2" 20
FDJ0506 8 5/16" 5 9/16" 18
FDJ0507 8 5/16" 5 5/8" 18
FDJ0508 8 5/16" 5 3/4" 16
FDJ0606 10 3/8" 6 9/16" 18
FDJ0607 10 3/8" 6 5/8" 18
FDJ0608 10 3/8" 6 3/4" 16
FDJ0610 10 3/8" 6 7/8" 14
FDJ0808 12 1/2" 8 3/4" 16
FDJ0810 12 1/2" 8 7/8" 14
FDJ0812 12 1/2" 8 1.1/16" 12
FDJ1010 16 5/8" 10 7/8" 14
FDJ1012 16 5/8" 10 1.1/16" 12
FDJ1210 20 3/4" 12 7/8" 14
FDJ1212 20 3/4" 12 1.1/16" 12
FDJ1214 20 3/4" 12 1.3/16" 12
FDJ1216 20 3/4" 12 1.5/16" 12
FDJ1612 25 1" 16 1.1/16" 12
FDJ1616 25 1" 16 1.5/16" 12
FDJ1620 25 1" 16 1.5/8" 12
FDJ2020 32 1.1/4" 20 1.5/8" 12
FDJ2024 32 1.1/4" 20 1.7/8" 12
FDJ2424 40 1.1/2" 24 1.7/8" 12

* The figures and technical data set out in the tables are only intended as approximations.
