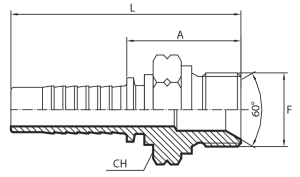

Metric male 60° cone


Metric male 60° cone
CODE DN INCHES DIAM D L
MM0310 5 3/16" 3 M10x1 21
MM0312 5 3/16" 3 M12x1.5 24.5
MM0410 6 1/4" 4 M10x1 21
MM0412 6 1/4" 4 M12x1.5 25.5
MM0414 6 1/4" 4 M14x1.5 27
MM0416 6 1/4" 4 M16x1.5 29
MM0418 6 1/4" 4 M18x1.5 29
MM0514 8 5/16" 5 M14x1.5 27
MM0516 8 5/16" 5 M16x1.5 29
MM0518 8 5/16" 5 M18x1.5 29
MM0614 10 3/8" 6 M14x1.5 27
MM0616 10 3/8" 6 M16x1.5 29
MM0618 10 3/8" 6 M18x1.5 29
MM0620 10 3/8" 6 M20x1.5 32
MM0622 10 3/8" 6 M22x1.5 32
MM0818 12 1/2" 8 M18x1.5 29
MM0820 12 1/2" 8 M20x1.5 33
MM0822 12 1/2" 8 M22x1.5 33
MM0824 12 1/2" 8 M24x1.5 36
MM0826 12 1/2" 8 M26x1.5 36
MM1026 16 5/8" 10 M26x1.5 36
MM1226 20 3/4" 12 M26x1.5 37
MM1230 20 3/4" 12 M30x1.5 36
MM1638 25 1" 16 M38x1.5 37
MM2045 32 1.1/4" 20 M45x1.5 43.5
MM2452 40 1.1/2" 24 M52x1.5 46

* The figures and technical data set out in the tables are only intended as approximations.
