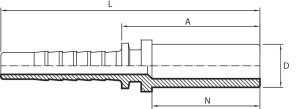

Straight Standpipe
| CODE | DN | INCHES | DIAM | D | L |
|---|---|---|---|---|---|
| PDL0306 | 5 | 3/16" | 3 | 30 | 6 |
| PDL0308 | 5 | 3/16" | 3 | 30 | 8 |
| PDL0406 | 6 | 1/4" | 4 | 30.5 | 6 |
| PDL0408 | 6 | 1/4" | 4 | 30.5 | 8 |
| PDL0410 | 6 | 1/4" | 4 | 32 | 10 |
| PDL0412 | 6 | 1/4" | 4 | 32 | 12 |
| PDL0508 | 8 | 5/16" | 5 | 30 | 8 |
| PDL0510 | 8 | 5/16" | 5 | 32 | 10 |
| PDL0512 | 8 | 5/16" | 5 | 32 | 12 |
| PDL0610 | 10 | 3/8" | 6 | 33 | 10 |
| PDL0612 | 10 | 3/8" | 6 | 32.5 | 12 |
| PDL0614 | 10 | 3/8" | 6 | 35.5 | 14 |
| PDL0615 | 10 | 3/8" | 6 | 33 | 15 |
| PDL0812 | 12 | 1/2" | 8 | 33 | 12 |
| PDL0814 | 12 | 1/2" | 8 | 36 | 14 |
| PDL0815 | 12 | 1/2" | 8 | 33.5 | 15 |
| PDL0816 | 12 | 1/2" | 8 | 39 | 16 |
| PDL0818 | 12 | 1/2" | 8 | 35.5 | 18 |
| PDL1018 | 16 | 5/8" | 10 | 36 | 18 |
| PDL1020 | 16 | 5/8" | 10 | 43.5 | 20 |
| PDL1022 | 16 | 5/8" | 10 | 38 | 22 |
| PDL1218 | 20 | 3/4" | 12 | 34.5 | 18 |
| PDL1220 | 20 | 3/4" | 12 | 44 | 20 |
| PDL1222 | 20 | 3/4" | 12 | 38 | 22 |
| PDL1225 | 20 | 3/4" | 12 | 51 | 25 |
| PDL1625 | 25 | 1" | 16 | 50 | 25 |
| PDL1628 | 25 | 1" | 16 | 41 | 28 |
| PDL1630 | 25 | 1" | 16 | 54 | 30 |
| PDL2030 | 32 | 1.1/4" | 20 | 54.5 | 30 |
| PDL2035 | 32 | 1.1/4" | 20 | 46.5 | 35 |
| PDL2038 | 32 | 1.1/4" | 20 | 60 | 38 |
| PDL2438 | 40 | 1.1/2" | 24 | 60 | 38 |
| PDL2442 | 40 | 1.1/2" | 24 | 47 | 42 |
* The figures and technical data set out in the tables are only intended as approximations.
