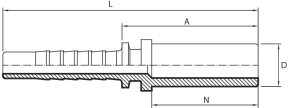

Straight Standpipe - French type


Straight Standpipe - French type
CODE DN INCHES DIAM D L
PDL0413F 6 1/4" 4 29.5 13
PDL0513F 8 5/16" 5 29.5 13
PDL0617F 10 3/8" 6 31.5 17
PDL0817F 12 1/2" 8 32.5 17
PDL0821F 12 1/2" 8 34.5 21
PDL0613F 10 3/8" 6 29.5 13
PDL1021F 16 5/8" 10 34.5 21
PDL1221F 20 3/4" 12 35.3 21
PDL1227F 20 3/4" 12 34.3 26
PDL1633F 25 1" 16 37.3 33
PDL2033F 32 1.1/4" 20 38 33

* The figures and technical data set out in the tables are only intended as approximations.
