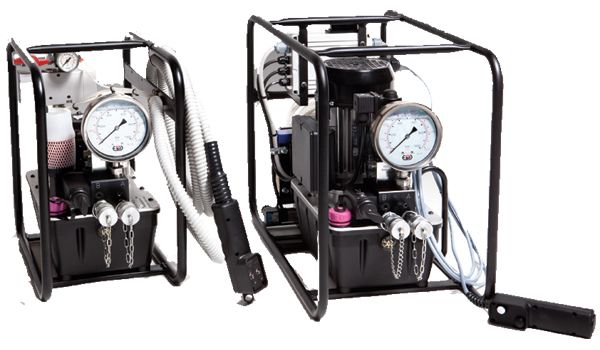

Specifically designed for torque wrenches, these power packs combine maximum operating efficiency with compact, lightweight design. Because of their compact dimensions and weight, they are very portable and supplied with a carry handle or protective frame. All models are equipped with:
- Coupler ¼ NPT - male on extension side and female on the return, complete with dust caps
- Two-stage piston pump
- Electric or pneumatic 4 ways 2 positions valve
- Pressure regulating valve
- Pressure gauge
- Relief valve
- Plastic tank
- Plastic casing with integrated handle (mod MDWR)
- Protection housing (mod. MDWRH, MDWRP and MDWRHE)
- Oil level gauge
- 3 m. remote control
- 5 m. electric cable
- Heat exchanger (mod. MDWRHE)
They are available in 4 models:
MDWR with 2,4/0,4 l/min pump and electric single phase 0,75 kW motor
MDWRH with 6/0,6 l/min pump and electric single phase 1,1 kW motor
MDWRP with 6/0,6 l/min pump and air 1,5 kW motor
MDWRHE with 6/0,6 l/min pump and electric single phase 1,1 kW motor and heat exchanger
- Reservoir Capacity 2,6 l
- Delivery at 700 bar 0,4 - 0,6 l/min
- Power Rating0,75 - 1,5 kW
- Air Consumption2130 l/min
- Max pressure 700 bar
