Series CRI-FO - Oil Return

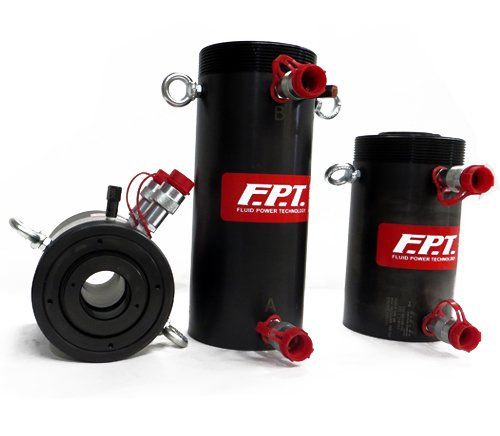

Hollow cylinders with oil return
- CRI-FO Series are cylinders with a hollow center. Designed for cable tensioning operations, positioning bars in tensile structures, pulley assembly and disassembly, hoisting, and cable and tie rod pulling tests. Tensioning bars, dywidag, macalloy.
- With the oil return system strokes can be longer than in cylinders with a spring return. Thanks to the oil return system, return times are shorter and under all operating conditions.
- With the threaded body cylinder positioning is easier, more accurate and safer.
- The stop ring not only guarantees maximum operator safety, preventing plunger over-stroke, but also outstanding eccentric load absorption.
- Hollow, high-strength, splined removable head.
- The wiper reduces contamination between ring and rod.
- Models weighing more than 20 kg are equipped with a handle or lifting eyebolts to make them easier to carry.
- Custom made cylinders with a hollow center can be manufactured on customer request.
Model
CRI-30/50-FO - CRI-30/100-FO - CRI-30/150-FO - CRI-30/260-FO - CRI-60/75-FO - CRI-60/160-FO - CRI-60/260-FO - CRI-100/75-FO - CRI-100/150-FO - CRI-100/260-FO - CRI-150/200-FO
Download Series Cri Fo Catalogue
