CMF - Spring Return

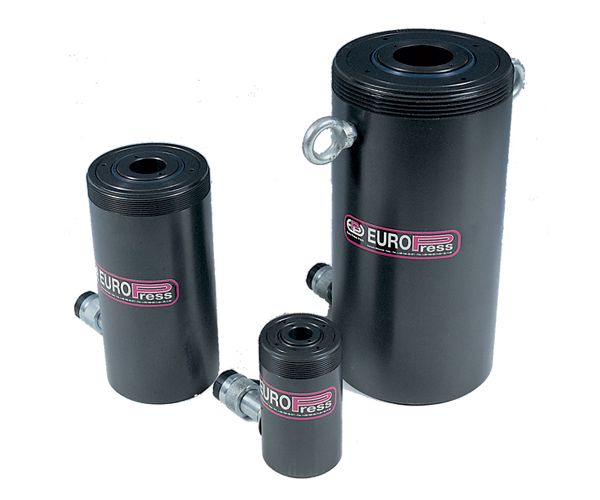

STEEL AND ALUMINIUM HOLLOW PISTON CYLINDERS, SPRING RETURN
All CMF cylinders are supplied as standard with a smooth hollow bore saddle which screws into the bore of the rod. The body has a metric collar thread and there are base mounting holes to allow for the fitting of accessories. The end of stroke nut has a wiper seal to prevent the penetration of dirt. Cylinders are supplied with anti-corrosive treatment, which is very effective to protect the central bore.
- Force 10 - 100 t
- Stroke 50 - 160 mm
- Max working pressure 700 bar
>
