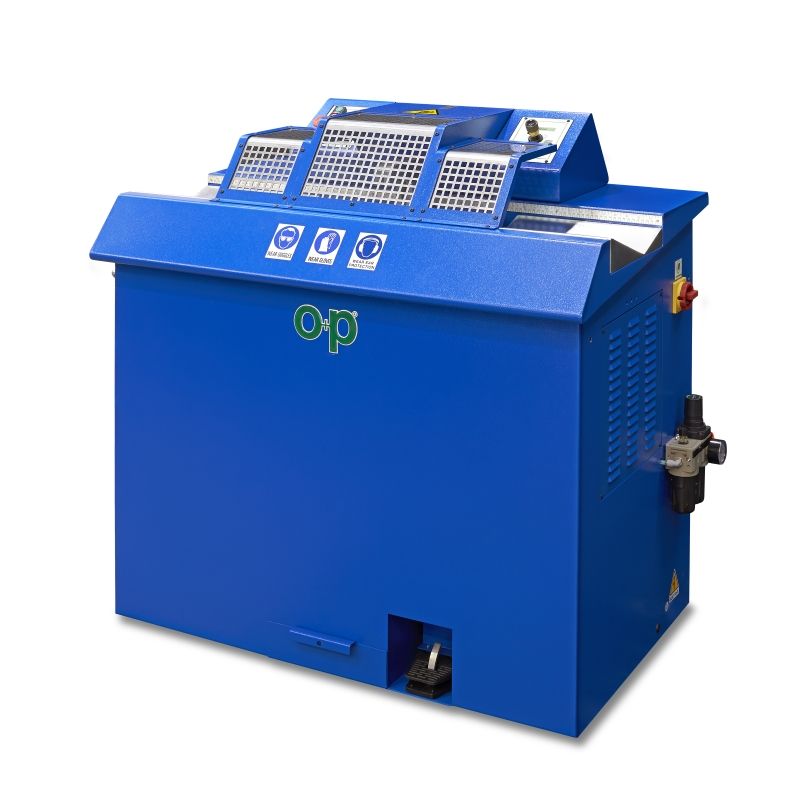

TF 4 / TAGLTF4D

TF4 is ideal for cutting flexible hydraulic hoses up to 2" six spirals.
Fume extractor and blowing kit upon request.

Main Features

  • self braking motor (5,5 Kw);
  • Ø 400 mm serrated blade;
  • cutting speed adjustment device;
  • self-centring hose support;
  • pedal-equipped pneumatic control;
  • recessed blade and guards for the operator's safety.

Product specifications could be modified without prior notice.

TF 4


6 SPIRALS 2''
4 SPIRALS 2''1/2
2 BRAIDS 3''
INDUSTRIAL HOSE 3''
MAXIMUM CUTTING Diam. 100 mm (3.937'')
REVOLUTIONS/MINUTE 2900
PNEUMATIC INPUT MAX 7 BAR (100 psi)
BLADE Diam. 400 mm (15.748'')
STANDARD VOLTAGE 400V 50HZ 3PH
DIMENSIONS L x W x H 1160x740x1130 mm (45.669''x29.134''x44.488'')
WEIGHT 375 KG (827 lbs)
SELF BRAKING MOTOR POWER 5.5 Kw (7.5 Hp) A=9,85
SAFETY PROTECTION incl.
SUCTION CONNECTION incl.
STROKE COUNTER incl.
MEASURING HOSE HOLDER OPTIONAL
CENTRING DEVICE + METER COUNTER OPTIONAL
FUME EXTRACTOR OPTIONAL
BLOWING KIT OPTIONAL
SPECIAL VOLTAGE OPTIONAL
