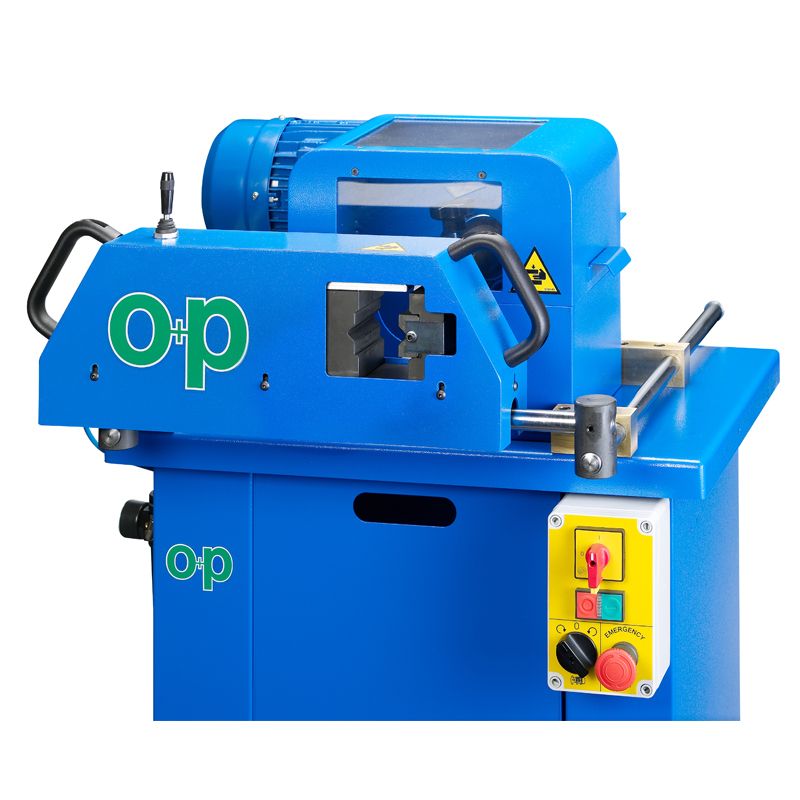

SPF2 / SPELSPF2

This device allows internal and external skiving of hydraulic hoses up to a 2’’ diameter. SPF2 is provided with a fixed tool-holder spindle with only one cutter provided on which is a millimetric ruler which allows setting the skiving distance. Thus, replacement of the pin and adjustment of position of the tool according to the diameter of the hose to be skived is required.

Main Features

  • pedal-equipped pneumatic control;
  • penumatic vice for blocking the hose.

Product specifications could be modified without prior notice.

SPF2


EXTERNAL SKIVING 2''
INTERNAL SKIVING 2''
REVOLUTIONS/MINUTE 300
WEIGHT 82 KG (181 Lbs)
PNEUMATIC INPUT MAX 7 BAR (100 psi)
DIMENSIONS L x W x H 685x500x1120 mm (26.969''x19.685''x44.094''
STANDARD VOLTAGE 400V 50HZ 3PH
MOTOR POWER 0.75 Kw (1 Hp)
SAFETY PROTECTION incl.
ELECTRIC PEDAL incl.
PNEUMATIC VICE OPTIONAL
TOOL HOLDER OPTIONAL
SPECIAL VOLTAGE OPTIONAL
