FE

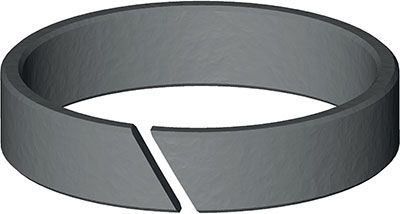

The Aston Seals FE type guide rings have been developed to substitute traditional bronze guides in hydraulic cylinders. They guide the piston and prevent metallic contact with the cylinder when radial forces act perpendicular to the direction of movement.
Chamfered edges prevent the splintering of the material during assembly and make the installation into the groove easier.
The compound used for these guides is a medium viscosity glass fibre reinforced acetal resin characterized by high strength, rigidity, hardness, impact resistance, resilience and excellent stability to high and low temperature.

  • Extended service life
  • Excellent wear-resistance
  • Simple design of groove and assembly
  • Reduce vibrations
  • Low friction
  • Good resistance to loads
  • Good mechanical stability at high temperature
  • Easy installation without expensive auxiliaries

FE Seal Model

FE 16 FE 18 FE 20 FE 20 16 5.6 FE 22 FE 22 19 3.2 FE 24 FE 25 19 9.6 FE 25 21 8.2 FE 25 FE 26 FE 28 FE 28.58 25.4 9.78 FE 30 FE 32 FE 32 28 8.2 FE 34 FE 34.93 31.75 12.95 FE 35 FE 36 FE 38.1 31.75 12.95 FE 38.1 34.93 9.52 FE 40 FE 40 34 9.6 FE 63 57 10 FE 63.5 57.15 9.52 FE 63.5 57.15 12.7 FE 63.5 57.15 12.95 FE 63.5 60.33 9.52 FE 65 FE 69.85 63.5 12.7 FE 69.85 63.5 19.05 FE 69.85 63.5 25.65 FE 70 FE 74 FE 75 FE 75 69 9.6 FE 75 71 15.1 FE 76.2 69.85 9.65 FE 76.2 69.85 12.95 FE 80 FE 80 72 20.5 FE 82.55 79.38 9.52 FE 85 FE 88.9 82.55 19.3 FE 90 84 10 FE 90 FE 94 FE 40 36 12.2 FE 41.28 38.1 20.89 FE 42 FE 44 40 6.3 FE 45 FE 46 FE 47.5 44.45 20.89 FE 47.62 41.27 12.7 FE 48 FE 49 FE 50 FE 50.8 44.45 12.7 FE 50.8 44.45 12.95 FE 50.8 47.63 9.52 FE 53.97 47.62 19.05 FE 55 FE 55 49 9.6 FE 56 FE 57.15 50.8 25.65 FE 57.16 50.25 6.1 FE 60 FE 60 52 20.5 FE 60 54 9.6 FE 63 FE 147 FE 150 FE 152.4 146.05 12.7 FE 152.4 149.23 9.52 FE 155 FE 160 FE 160 152 20.5 FE 164 160 10.2 FE 165 FE 170 FE 175 FE 177.8 171.45 12.7 FE 180 FE 180 172 20.5 FE 184 180 10.2 FE 185 FE 190 FE 195 FE 198 FE 200 FE 205 FE 210 FE 95 FE 96 FE 100 FE 100 92 20.5 FE 101.6 95.25 25.65 FE 101.6 98.43 9.52 FE 105 FE 110 FE 115 FE 120 FE 120 112 20.5 FE 125 FE 126 FE 127 120.65 25.65 FE 127 123.83 9.52 FE 130 FE 135 FE 135 129 19.2 FE 140 FE 140 132 10.5 FE 140 132 20.5 FE 145 FE 215 FE 220 FE 220 216 10.2 FE 225 FE 230 FE 235 FE 240 FE 245 FE 250 FE 250 246 20.2 FE 255 FE 260 FE 265 FE 270 FE 275 FE 280 FE 285 FE 290 FE 295 FE 300
