OXL
OXL 300 1/4” - OXL 300 3/8” - OXL 400 1/4” - OXL 400 3/8” - OXL 500 1/4” - OXL 500 3/8”

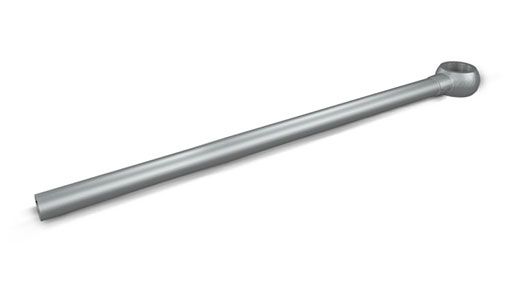

Extra Long Banjo - Fitting For DIN 2353 Valves Series

Use and Operation
Fittings for Ø 12 or Ø15 mm pipes, adjustable at 360°; they are used on DIN 2353 valve series for direct mounting on the cylinder.

Materials and Features

  • Body: zinc-plated steel

Applications
Once obtained the desired centre distance, put the pipe into the valve’s port and connect the fitting to the cylinder though the screw.

On Request

  • specific centre distance (specify CODE/M with the desired mm length)
КОД:

R1241 - R1271 - R1242 - R1272 - R1243 - R1273
