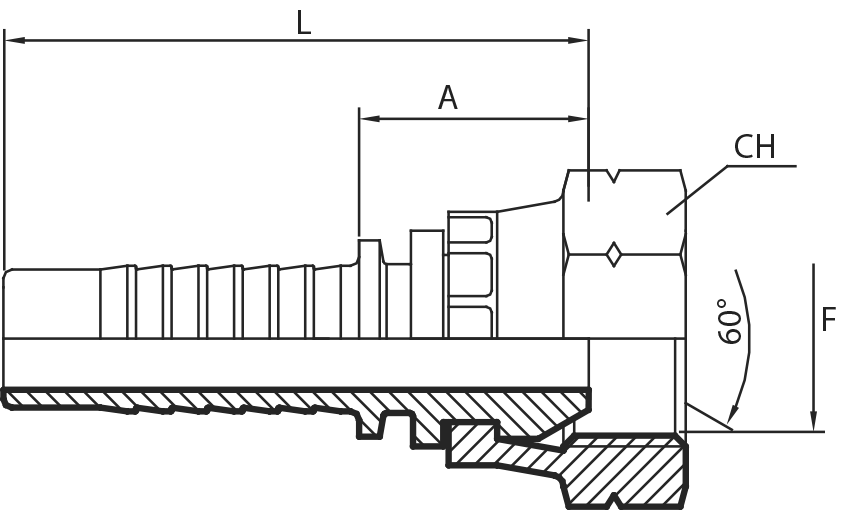

| CODE | DN | INCHES | DIAMETER | D | L |
|---|---|---|---|---|---|
| FDM0310 | 5 | 3/16" | 3 | M10x1 | 18 |
| FDM0312 | 5 | 3/16" | 3 | M12x1.5 | 18 |
| FDM0410 | 6 | 1/4" | 4 | M10x1 | 18 |
| FDM0412 | 6 | 1/4" | 4 | M12x1.5 | 18 |
| FDM0414 | 6 | 1/4" | 4 | M14x1.5 | 18 |
| FDM0416 | 6 | 1/4" | 4 | M16x1.5 | 19 |
| FDM0418 | 6 | 1/4" | 4 | M18x1.5 | 19 |
| FDM0514 | 8 | 5/16" | 5 | M14x1.5 | 18 |
| FDM0516 | 8 | 5/16" | 5 | M16x1.5 | 19 |
| FDM0518 | 8 | 5/16" | 5 | M18x1.5 | 19 |
| FDM0614 | 10 | 3/8" | 6 | M14x1.5 | 19 |
| FDM0616 | 10 | 3/8" | 6 | M16x1.5 | 20 |
| FDM0618 | 10 | 3/8" | 6 | M18x1.5 | 20 |
| FDM0620 | 10 | 3/8" | 6 | M20x1.5 | 21 |
| FDM0622 | 10 | 3/8" | 6 | M22x1.5 | 21 |
| FDM0816 | 12 | 1/2" | 8 | M16x1.5 | 20 |
| FDM0818 | 12 | 1/2" | 8 | M18x1.5 | 20 |
| FDM0820 | 12 | 1/2" | 8 | M20x1.5 | 22 |
| FDM0822 | 12 | 1/2" | 8 | M22x1.5 | 22 |
| FDM0824 | 12 | 1/2" | 8 | M24x1.5 | 23 |
| FDM0826 | 12 | 1/2" | 8 | M26x1.5 | 24 |
| FDM1022 | 16 | 5/8" | 10 | M22x1.5 | 22 |
| FDM1026 | 16 | 5/8" | 10 | M26x1.5 | 24 |
| FDM1027 | 16 | 5.8 | 10 | M27x1.5 | 24 |
| FDM1226 | 20 | 3/4" | 12 | M26x1.5 | |
| FDM1227 | 20 | 3/4" | 12 | M27x1.5 | |
| FDM1227X2 | 20 | 3/4" | 12 | M27x2 | |
| FDM1230 | 20 | 3/4" | 12 | M30x1.5 | |
| FDM1233 | 20 | 3/4" | 12 | M33x1.5 | |
| FDM1638 | 25 | 1" | 16 | M38x1.5 | |
| FDM2045 | 32 | 1.1/4" | 20 | M45x1.5 | |
| FDM2452 | 40 | 1.1/2" | 24 | M52x1.5 |
* Приведенные в таблицах цифры и технические данные являются лишь приблизительными.
