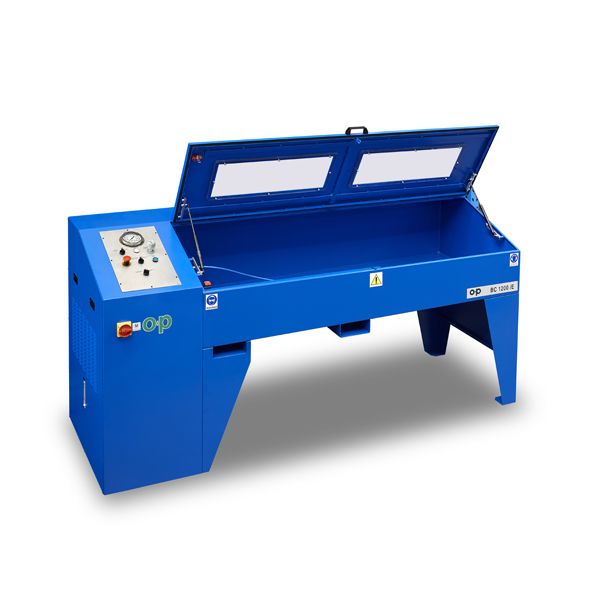

BC1200E / BC1200E
Test bench up to 1200 bars, provided with manual control and hydraulic multiplier. Not suitable for burst tests.
Product specifications could be modified without prior notice.
| STATIC PRESSURE | 1200 bar (17400 psi) |
| IMPULSE PRESSURE | 1200 bar (17400 psi) |
| MIN. STARTING PRESSURE | 100 bar (1450 psi) |
| PRESSURE CONTROL | manual |
| TEST | manual |
| TYPE OF DRIVE | hydraulic intensifier |
| TEST LIQUID | OIL |
| N. MANIFOLDS | 2 |
| N. MANIFOLD CONNECTIONS | N.1 special quick coupling n.2 1/4 |
| LIQUID FILLING | manual |
| FILLING FLOW | 17 Lt/min |
| PRESSURE DISCHARGE | manual |
| PRESSURE GAUGE | analog |
| DOOR MECHANIC SAFETY DEVICE | automatic |
| DOOR ELECTRIC SAFETY DEVICE | automatic |
| STANDARD CHAMBER DIMENSIONS | 2000x830 mm (78.740''x32.677'') |
| BENCH DIMENSIONS | 2500x875x1200 mm (98.425''x34.449''x47.244'') |
| TANK | 110 Lt |
| STANDARD VOLTAGE | 400V 50 HZ 3PH |
| WEIGHT WITHOUT OIL | 460 KG (1014 Lbs) |
| SUCTION FILTER | incl. |
| DELIVERY FILTER | incl. |
| SPECIAL VOLTAGE | OPTIONAL |
| ADAPTER | OPTIONAL 3/8''-1/2''-3/4''-1''-1''1/4-1''1/2-2'' |
| FIXED VOLUME MULTIPLIER | oil volume 0.325 lt |
