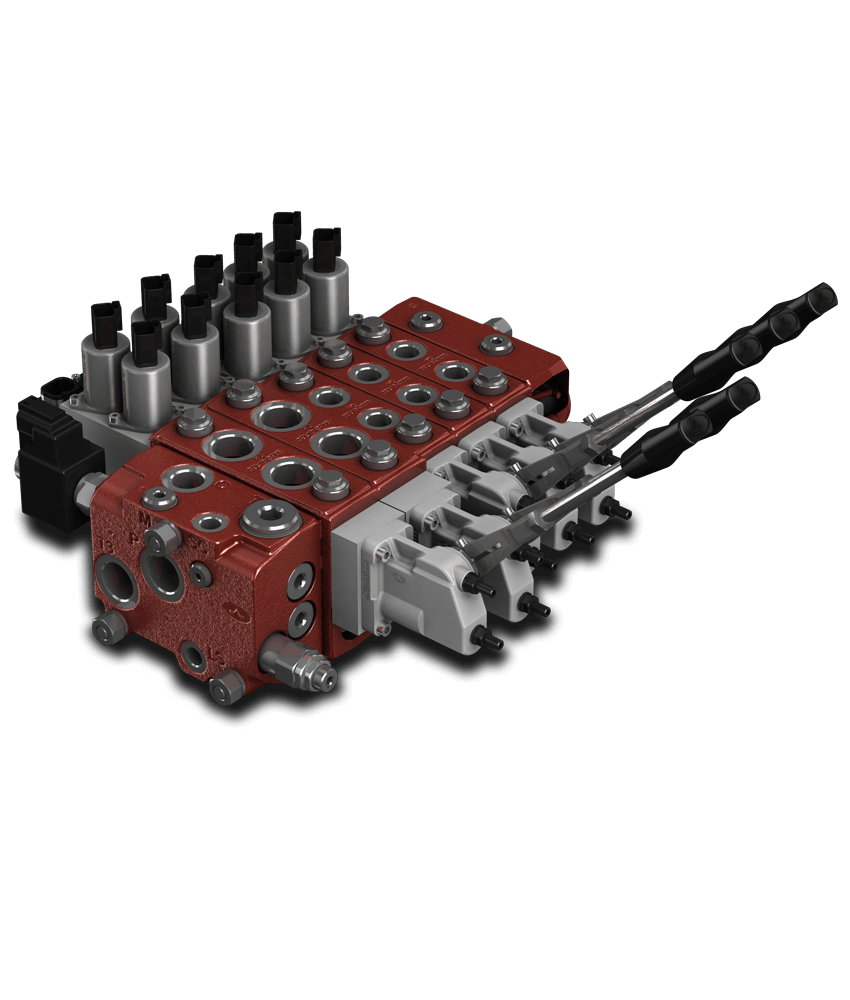

Medium range directional valve of the DPX series and the most versatile and complete. Highly configurable and versatile for applications such as Miniexcavators, Aerial platform, Truck Mounted Cranes, Telehandlers, Agricultural and Forestry machines.
Valve model for high pressure applications (HP), inspheroidal graphite cast iron
Valve configurations with high flow sections (HF)
Special inlet sections designed for steering applications
Inlet sections with or without by-pass valve
Manual, hydraulic and proportional electro-hydraulic controls
Optional spool position sensors
Synergy with the Walvoil electronic systems range
Nominal Flow Rating on working ports l/min - (US gpm): 90 (24) - 120 (32)
Nominal Flow Rating l/min - (US gpm): > 120 (32)
Max. Pressure bar - (psi): up to 420 (6100)
Number of Sections: 12
Pitch mm (in): 36 (1,42)
Full Flow Sharing Valve for a wide range of applications
