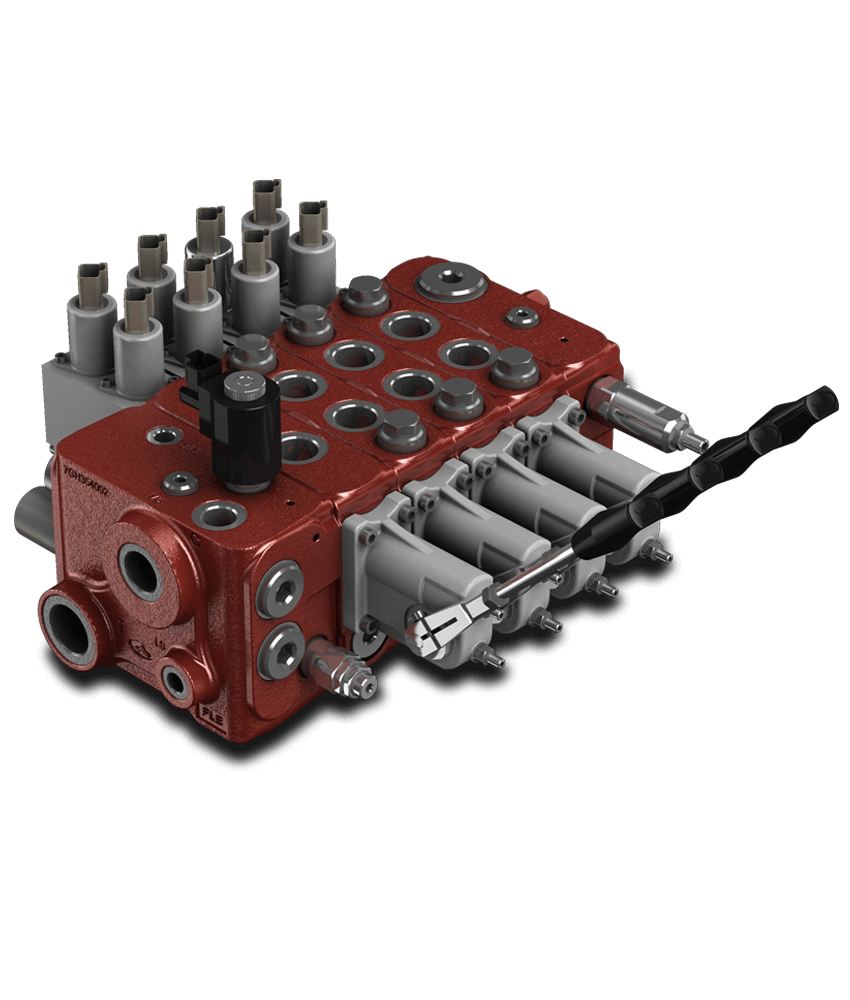

Versatile and complete, it show the highest flow performance of the DPX series. Suitable for applications such as Mini/Midiexcavators, Telehandlers, Drilling Rigs, Agricultural and Forestry machines. - Valve model for high pressure applications (HP), inspheroidal graphite cast iron - Special inlet sections designed for steering applications - Inlet sections with or without by-pass valve - Manual, hydraulic and proportional electro-hydraulic controls - Optional spool position sensors - Synergy with the Walvoil electronic system range
Nominal Flow Rating on working ports l/min - (US gpm): 160 (42)
Nominal Flow Rating l/min - (US gpm): 230 (61)
Max. Pressure bar - (psi): up to 420 (6100)
Number of Sections: 10
Pitch mm (in): 48 (1,89)
Full Flow Sharing Valve for a midium-high flow applications
