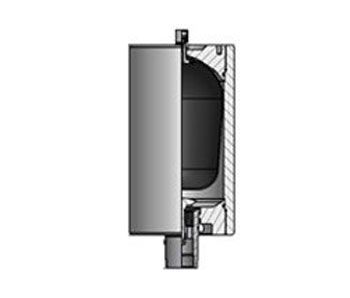

ACSX

Technical features

  • Maximum working pressure (PS): 220 bar
  • Test pressure (PT): PS x 1,43 / 1,3 / 1,5
  • Body: in AISI 316L Stainless Steel
  • Bladder: NBR, HNBR, EPDM, FPM, HYTREL, Butyl, Polyurethane
  • Installation position: horizontal / vertical (nitrogen valve upward)

Compression Ratio:

  • recommended: P2/P0 = 2.5
  • maximum: P2/P0 = 4

Mechanical life: the number of cycles is inversely proportional to the increase of the compression ratio. For pulsation dampener applications, the nitrogen value must be from 60% to 80% of the working pressure also in relation with the type of pump and the working temperature

Also available:

  • Outside epoxy painted as per standard FOX procedure or as project specification
  • Connection with flange SAE 3000 – SAE 6000, ANSI B16.5 or UNI/DIN
  • Connection API spec. 6A type 6BX
  • Autoclave or Grayloc connection
  • Special connection on request
  • Integral flange connection
  • Maintenance Free (ACSX-SMF)
  • Exotic material execution

Model

ACSX10 - ACSX20 - ACSX25 - ACSX35 - ACSX50
