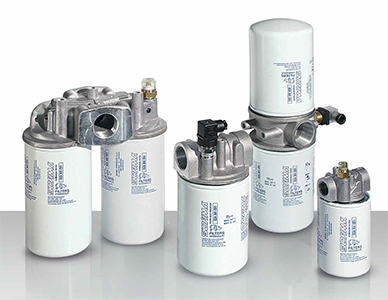

AMD
Sofima

1,2 MPa (12 bar)
Port sizes: 3/4” - 1” 1/2
Flow rates: 7 ÷ 375 l/min.
Technical data
Max. working pressure: 1,2 MPa (12 bar)
Max. test pressure: 1,5 MPa (15 bar)
Bursting pressure: 2,5 MPa (25 bar)
Fatigue test: 0 ÷ 1,2 MPa (12 bar) / 100.000 cycles Bypass valve: 170 kPa (1,7 bar) ± 10%
Filter element collapse pressure: standard: ∆p 400 kPa (4 bar) all types
Working temperature:  -25 ÷ +110°C
Materials
Head: aluminium
Seals: standard NBR (on request FKM)
Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO 3968: Pressure drop versus fl ow rate
  • ISO 16889: Multipass test.
Filter Code
AMD 151B - AMD 152B - AMD 301B - AMD 302B - AMD 601B - AMD 602B - AMD 801B - AMD 802B - AMD 801F - AMD 802F
