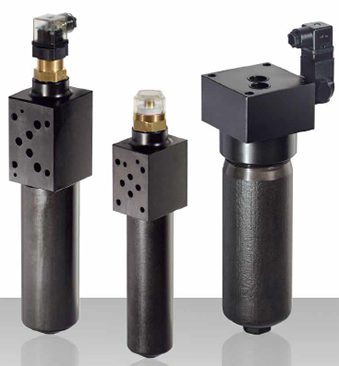

MDF

31,5 MPa (315 bar)
Port sizes: Cetop 03-05-07
Flow rates: 7 ÷ 130 l/min
Technical data
Max. working pressure: 31,5 MPa (315 bar)
Max. test pressure: 40 MPa (400 bar)
Bursting pressure: 94,5 MPa (945 bar)
Fatigue test: 0 ÷ 28 MPa (280 bar) / 1.000.000 cycles
Filter element collapse pressure: ∆p 21 MPa (210 bar)
Working temperature:  -25 ÷ +110°C
Materials
Head: cast iron
Bowl: forged steel
Seals: standard NBR (on request FKM)
Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO 3968: Pressure drop versus flow rate
  • ISO 16889: Multipass test.
Filter Code
MDF 003 - MDF 005 - MDF 007
