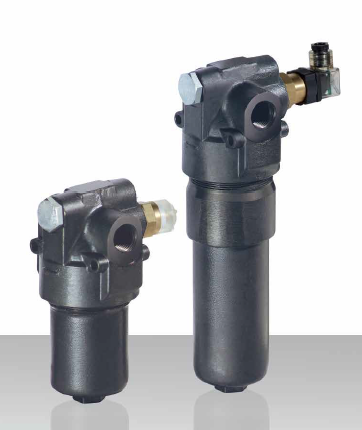

MDM

11 MPa (110 bar)
Port sizes: 1/2”
Flow rates: 8 ÷ 75 l/min
Technical data
Max. working pressure: 11 MPa (110 bar)
Max. testing pressure: 16 MPa (160 bar) Bursting pressure: 30 MPa (300 bar)
Fatigue test: 0 ÷ 9 MPa (90 bar) / 1.000.000 cycles Working temperature: -25°C ÷ +110°C
Bypass valve: ∆p 600 kPa (6 bar) ± 10%
Filter element collapse pressure: standard: ∆p 8 MPa (80 bar) except CD-CV series ∆p 2 MPa (20 bar)
Working temperature: -25 ÷ +110°C

Material
Head and bowl: anodized aluminium
Seals: standard NBR on request FKM

Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG
(according to ISO 6743/4).

All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO 3968: Pressure drop versus fl ow rate
  • ISO 16889: Multipass test.
Filter Code
MDM 101 - MDM 102

Hydraulic Systems and Components
