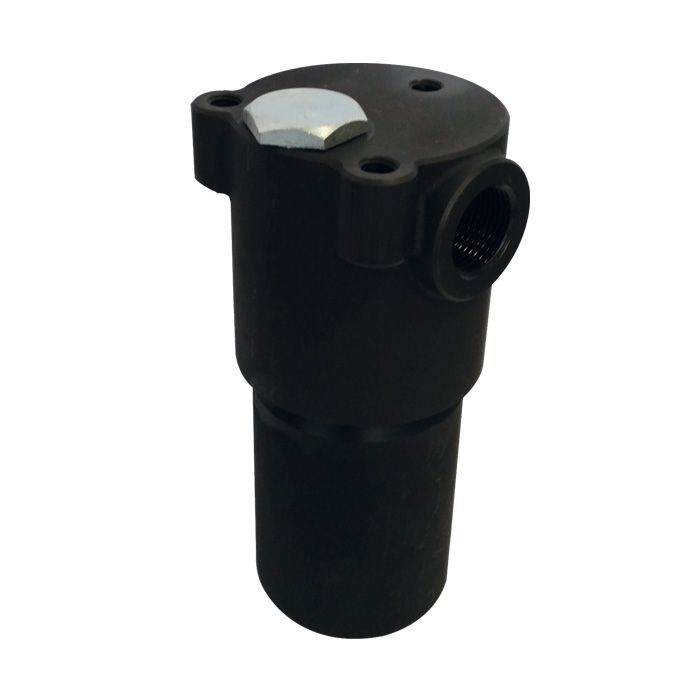

Filter Housing
Pressure:

• Maximum Working: 315 bar (31.5 MPa)
• Burst: 950 bar (95 Mpa)

Connection Ports: 1/2” BSP ÷ 3/4" BSP ÷ M22x1,5 (other thread option on demand)

Materials:

• Head: Cast Iron
• Bowl: Steel
• Seal: NBR (FKM on demand)

By-Pass: Opening pressure 6 bar ± 10%

Filter Element

• Media: Microfiber, Cellulose and Wire Mesh - Low Collapse Series Microfiber - High Collapse Series
• Collapse Pressure: 20 bar (290 psi) or 210 bar (3045 psi)

Additional information

• Working Temperature: -25°C +110°C (-13°F +230°F)
• Fluid Compatibility: Full with HH-HM-HR-HV-HG oils

HTM filters are designed for vertical mounting

---
