Series OMTI

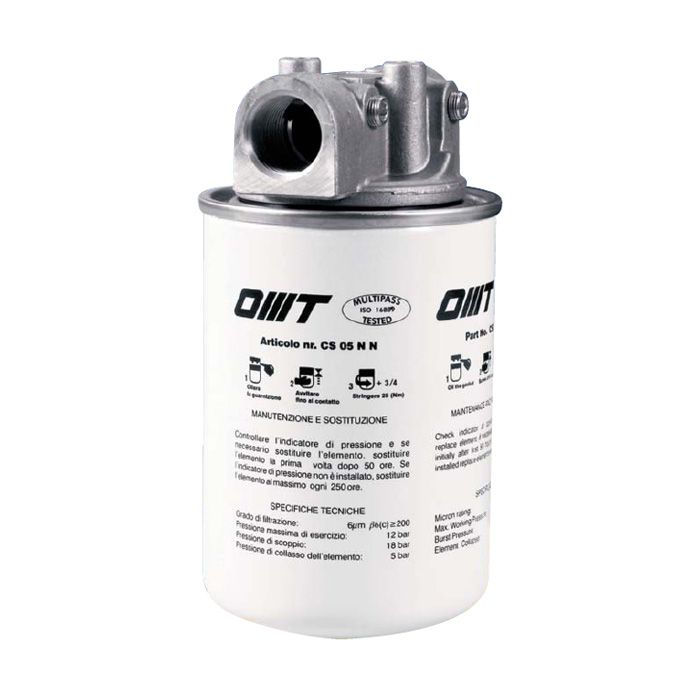

In line SPIN-ON type filters with disposable cartridge elements suitable for application  on  suction  lines  or  pressure  return  lines.  Filter  heads  are  available  with  port tappings of 3/4” to 1.1/2” BSP, whilst the larger sized type OMTI31 - OMTI36 are available with SAE ports.
SPIN-ON replace elements can be supplied either standard or with safety feature to stop oil spillage during element replacement.
The filter head on both the OMTI and FTT are suitable for either European standard or American standard cartridge elements.

Technical data

  • Max working pressure = 10 bar
  • Max test pressure = 18 bar
  • Suction by-pass valve calibrated to 0.25 bar ± 10%
  • Return by-pass valve calibrated to 1.7 bar ± 10%
  • Working temperature -25°C up to +95°C
  • Compatibility with hydraulic oils as per ISO 2943
  • Filtrating elements collapse pressure ISO 2941
  • Threated connections according with UNI 388
  • Filter head aluminium UNI 5076 alloy
Filter Code
FTT 05 - FTT 06 - FTT 10 - FTT 15
