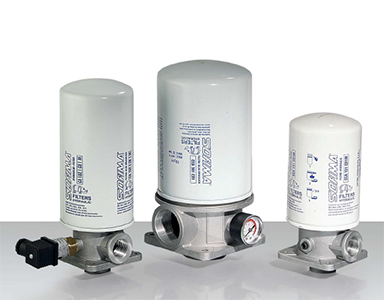

MAR

1,2 MPa (12 bar)
Port sizes: 3/4” ÷ 1” 1/2
Flow rates: 30 ÷ 205 l/min
Technical data
Max. working pressure: 1,2 MPa (12 bar)
Max. test pressure: 1,5 MPa (15 bar)
Bursting pressure: 2,5 MPa (25 bar)
Fatigue test: 0 ÷ 1,2 MPa (12 bar) / 100.000 cycles
Bypass valve: ∆p 170 kPa (1,7 bar) ±10%
Filter element collapse pressure: ∆p 400 kPa (4 bar)
Working temperature: -25 ÷ +110°C
Materials
Head: aluminium
Canister: steel
Seals: standard NBR
Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO 3968: Pressure drop versus flow rate
  • ISO 16889: Multipass test.
Filter Code
MAR 151 - MAR 152 - MAR 301 - MAR 302
