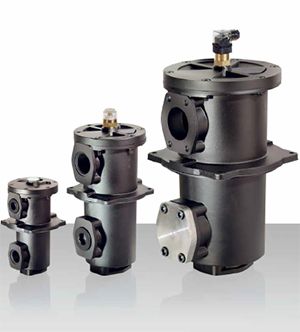

MRH
Sofima

2 MPa (20 bar)
Port sizes: 1/2” ÷ 3” 1/2
Flow rates: 3 ÷ 1.200 l/min
Technical data
Max. working pressure: 2 MPa (20 bar)
Max. test pressure: 3 MPa (30 bar)
Bursting pressure: 6 MPa (60 bar)
Fatigue test: 0 ÷ 1,5 MPa (15 bar) / 1.000.000 cycles
Bypass valve: ∆p 300 kPa (3 bar) ± 10%
Filter element collapse pressure: standard: ∆p 1 MPa (10 bar)
Working temperature: -25 ÷ +110°C
Materials
Head: anodized aluminium
Bowl: anodized aluminium (steel for size 250 only)
Seals: standard NBR (on request FKM)
Compatibility(ISO 2943)
Full with fl uids: HH-HL-HM-HV-HTG  (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO 3968: Pressure drop versus flow rate
  • ISO 16889: Multipass test.
Filter Code
MRH 008 - MRH 015 - MRH 025 - MRH 070 - MRH 150 - MRH 250
