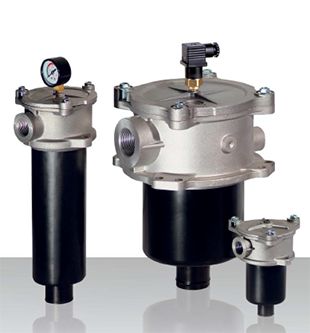

RFM

300 kPa (3 bar)
Ports: 3/8”÷ 2” 1/2
Flow rates: 5 ÷ 700 l/min
Technical data
Max. working pressure: 300 kPa (3 bar)
Max. test pressure: 500 kPa (5 bar)
Bursting pressure: 1 MPa (10 bar)
Fatigue test: 0 ÷ 300 kPa (3 bar) / 300.000 cycles
Bypass valve:∆p170kPa(1,7bar)±0,2
Filter element collapse pressure: ∆p300kPa(3bar) (type CD-CV) - ISO 2941 ∆p1MPa(10bar) (type DR-VR-MV-MS-MN- FT-FC-FD-FV) - ISO 2941
Working temperature: -25 ÷ +110°C
Materials
Cover and head: aluminium
Bowl: polyamide (steel for size 004 and 055 to 160)
Seals: standard NBR (on request FKM)
Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO3968: Pressure drop versus flow rate
  • ISO 16889: Multipass test.
Filter Code
RFM 004 RFM 008 RFM 009 RFM 011 RFM 012 RFM 015 RFM 020 FM 025 RFM 030 FM 040 FM 050 FM 055 RFM 060 FM 070 FM 080 RFM 100 RFM 110 RFM 125 RFM 150
