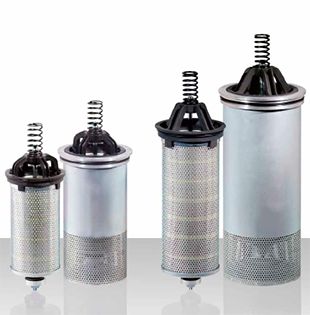

RSC
Sofima

1 MPa (10 bar)
Flow rates: 20 ÷ 2400 l/min
Technical data
Max. working pressure: 1 MPa (10 bar)
Max. testing pressure: 2 MPa (20 bar)
Bursting pressure: 3 MPa (30 bar)
Fatigue test: 0 ÷ 500 kPa (5 bar) / 1.000.000 cycles
Bypass valve: ∆p 170 kPa (1,7 bar) ± 0,2
Filter element collapse pressure: ∆p 1 MPa (10 bar)
Working temperature: -25 ÷ +110°C
Materials
Element support:  size 100 - 200 polyamide, size 300 aluminium
Diffusor: zinc plated steel
Magnetic core: syntherized magnetic material
Seals: standard NBR (on request FKM)
Compatibility(ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).
For fluids different than the above mentioned, please contact our Sales Department.
All tests performed according to the following standards:

  • ISO 2941: Element collapse resistance test
  • ISO 2942: Production integrity test
  • ISO 2943: Fluids compatibility
  • ISO 3723: End load test method
  • ISO 3724: Flow fatigue resistance method
  • ISO 3968: Pressure drop versus fl ow rate
  • ISO 16889: Multipass test.
Filter Code
RSC 110 - RSC 120 - RSC 130 - RSC 140 - RSC 220 - RSC 230 - RSC 240 - RSC 310 - RSC 320 - RSC 330 - RSC 340 - RSC 410 - RSC 420 - RSC 430 - RSC 440
