AMF

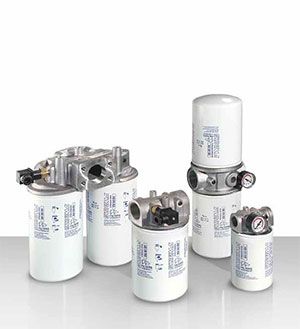

Spin-On filter for suction or return line.

1,2 MPa (12 bar)
Port sizes: 3/4” - 1” 1/4 - 1” 1/2
Flow rates: 7 ÷ 375 l/min
Technical Data
Max. working pressure: 1,2 MPa (12 bar)
Max. test pressure: 1,5 MPa (15 bar)
Bursting pressure: 2,5 MPa (25 bar)
Fatigue test:  0 ÷ 1,2 MPa (12 bar) / 100.000 cycles
Bypass valve: suction 30 kPa (0,30 bar) ±10% return 170 kPa (1,7 bar) ±10%
Filter element collapse pressure:  standard: ∆p 400 kPa (4 bar)
Working temperature: -25 ÷ +110°C
Materials
Head: die cast aluminium
Seals: standard NBR on request FKM
Compatibility (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).

All tests performed according to the following standards:
ISO 2941: Element collapse resistance test
ISO 2942: Production integrity test
ISO 2943: Fluids compatibility
ISO 3723: End load test method
ISO 3724: Flow fatigue resistance method
ISO 3968: Pressure drop versus fl ow rate
ISO 16889: Multipass test.
