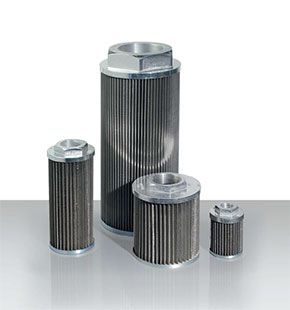

FAM

Port sizes: 3/8” ÷ 4”
Flow rates: 5 ÷ 600 l/min
Technical Data
Bypass valve: 300 kPa (0,3 bar) ± 10% on request (not available for FAM130-150)
Filter element collapse pressure: standard ∆p 100 kPa (1 bar)
Working temperature: -25 ÷ +110°C
Materials
Connector: aluminium
Internal core: zinc plated steel
End cap: zinc plated steel
COMPATIBILITY (ISO 2943)
Full with fluids: HH-HL-HM-HV-HTG (according to ISO 6743/4).

All tests performed according to the following standards:
ISO 2941: Element collapse resistance test
ISO 2942: Production integrity test
ISO 2943: Fluids compatibility
ISO 3723: End load test method
ISO 3724: Flow fatigue resistance method
ISO 3968: Pressure drop versus flow rate
ISO 16889: Multipass test.

Filter Code
FAM003 - FAM004 -FAM006 - FAM008 - FAM011 - FAM013 - FAM015 - FAM020 - FAM025 - FAM030 - FAM040 - FAM043 - FAM045 - FAM050 - FAM060 - FAM065 - FAM075 - FAM080 - FAM115 - FAM130 - FAM150
