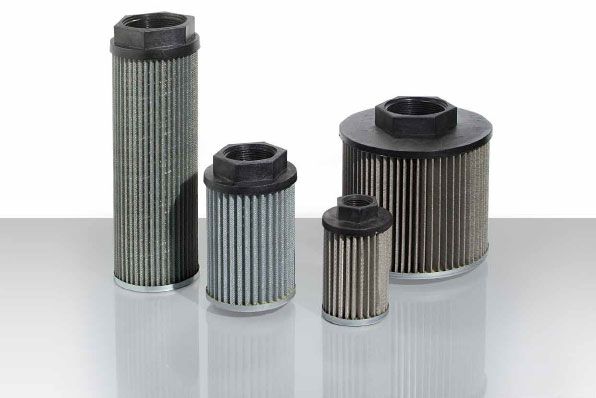

MSZ

Port sizes: 1/2” ÷ 3”
Flow rates: 15 ÷ 550 l/min
Technical Data
Bypass valve: 30 kPa (0,3 bar) ± 10% on request
Filter element collapse pressure:
Standard: Δp 100 kPa (1 bar)
Working temperature: -25 ÷ +90°C
Materials
Connector: polyamide
Internal core: zinc plated steel
End cap: zinc plated steel
COMPATIBILITY (ISO 2943)
Full with fluids: HH-HL-HM-HV -HTG
(according to ISO 6743/4).
For fluids different than the above mentioned,
please contact our Sales Department.

Filter Code
MSZ 101 - MSZ 201 - MSZ 202 - MSZ 301 - MSZ 302 - MSZ 303 - MSZ 401 - MSZ 402 - MSZ 403
