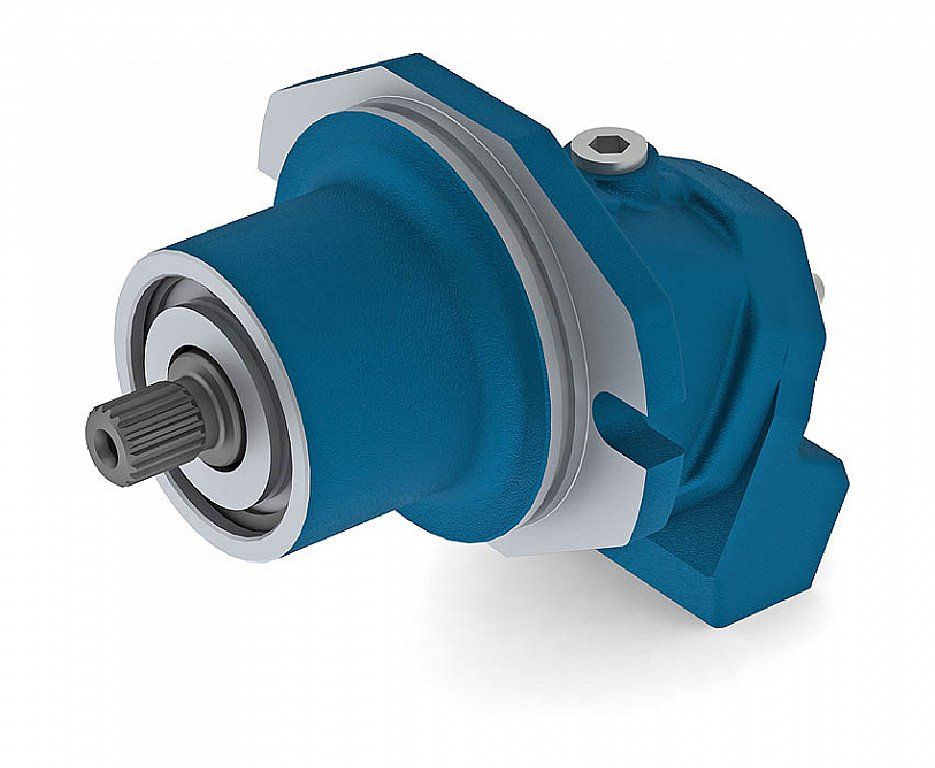

H1CR Series
H1CR series are a family of fixed displacement motors, bent axis piston designed for operation in open and closed circuit. H1CR series motors have a plug-in flange to be mounted on gear boxes, to fit on track drives and winch applications. A range of flangeable valves, for open and closed circuit is also available.
|
Model H1CR |
Displacement cc |
Pressure cont. bar |
Pressure max. bar |
Speed max. rpm |
Torque cont. Nm |
Flow max. lpm |
Power max. Kw |
Weight Kg |
|---|---|---|---|---|---|---|---|---|
| 030 | 30,0 | 350 | 450 | 4500 | 167 | 135 | 79 | 13 |
| 045 | 44,3 | 350 | 450 | 4200 | 247 | 186 | 108 | 20 |
