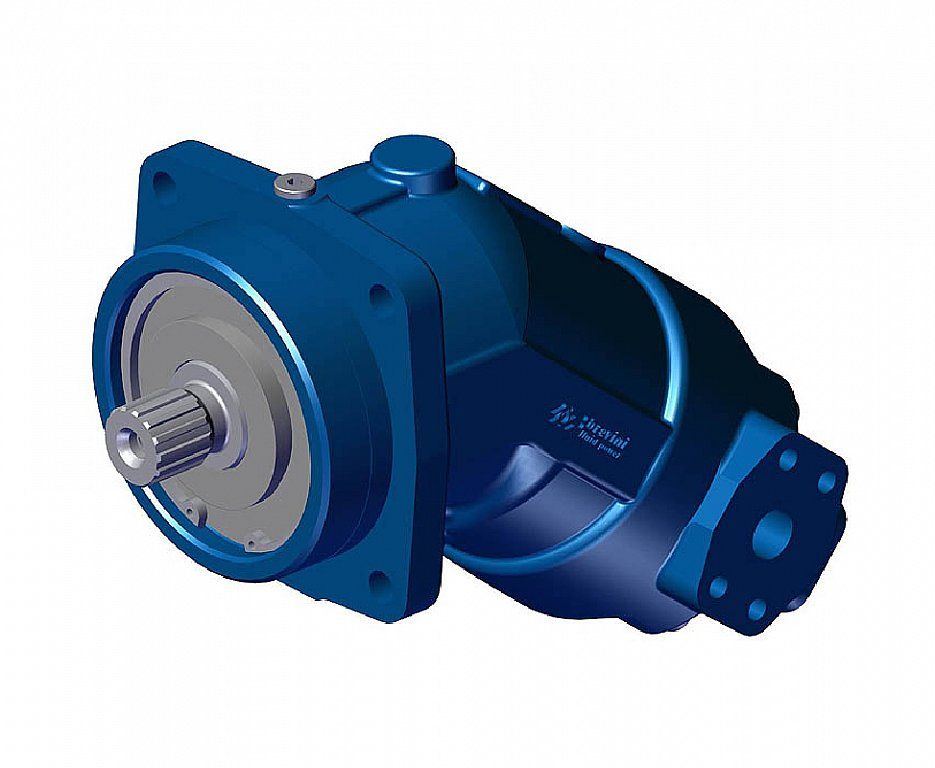

SH11C Series

Units of SH11C series are a family of motors and pumps with fixed displacement thant can be used both in open and closed circuit. The SH11C fixed series motors features 40° bent axis angle and offer machine designers great flexibility in fact they can be used on heavy duty applications both for industrial – stationery machines and on/off highway mobile vehicles. The proven design incorporating convex valve plates, high quality components and manufacturing techniques, results in high performance products capable of up to 430 bar (6235 psi) continuous and 480 bar (6960 psi) peak pressure. This high performance, yet compact design, allows high power density in small spaces. Fully laboratory tested and field proven SH11C motors provide maximum efficiency and long life. Heavy duty bearings permit high radial and axial loads. Typical applications are: earth moving and construction equipment, material handling and lifting vehicles, concrete and mining applications, industrial machinery.

Model

SH11C

Displacement

cc

Pressure cont.

bar

Pressure max.

bar

Speed max.

rpm

Torque cont.

Nm

Flow max.

lpm

Power max.

Kw

Weight

Kg

055 56,35 430 480 5000 386 282 202 19
063 63,26 430 480 5000 433 316 226 19
075 77,82 430 480 4500 533 350 251 23.7
090 86,23 430 480 4500 590 388 278 23.7
108 108,4 430 480 4000 742 433 310 35
125 124,8 430 480 4000 855 500 358 35
160 163,9 430 480 3600 1122 590 423 48
180 178,1 430 480 3600 1219 641 459 48
