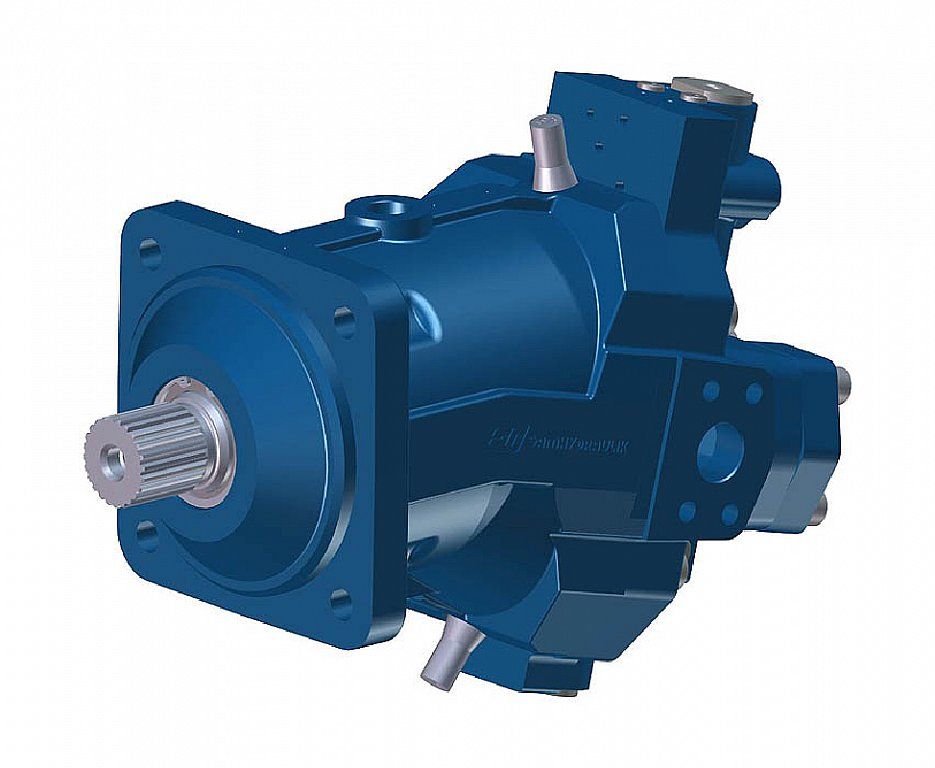

SH7V Series

SH7V series are a family of variable displacement motors, bent axis piston design for operation in both open and closed circuit. The proven design incorporating the lens shape valve plate, the high quality components and manufacturing techniques make able the SH7V series motors to provide up to 430 bar [6235 psi] continuous and 480 bar [6960 psi] peak performance. Fully laboratory tested and field proven, these motors provide maximum efficiency and long life even at very bad filtering conditions. Heavy duty bearings permit high radial and axial loads. Versatile design includes a variety of control and shaft ends that will adapt the SH7V series motors to any application both industrial and mobile.

Model

SH7V

Displacement

cc

Pressure cont.

bar

Pressure max.

bar

Speed max.

rpm

Torque cont.

Nm

Flow max.

lpm

Power max.

Kw

Weight

Kg

055 30 min ÷ 61 max 430 480 7000 418 271 194 28
075 40 min ÷ 80,58 max 430 480 6150 552 322 231 36
108 56 min ÷ 112,5 max 430 480 5600 770 382 273 47
160 80 min ÷ 160.8 max 430 480 5000 1101 500 330 63
SH7V Series

DownloadSh7v Series Catalogue
