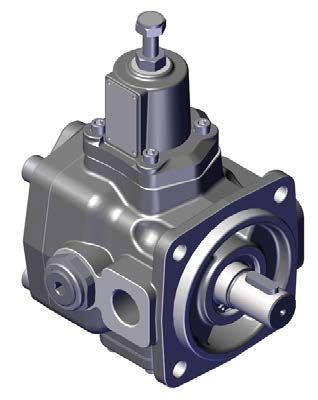

PVS PUMPS
Low pressure variable displacement vane pump with mechanical pressure compensator.
Main Features
- Rotation direction: Right hand (clockwise – viewed from shaft end)
- Mounting flange : Flange 4 bolt (UNI ISO 3019/2)
- Port connection: Gas BSP(UNI ISO 228/1) threads and SAE
- Pressure compensator: Mechanical, direct
- Other: "Q" with volume adjustment unit (flow adjuster) only on request.
All PVS pumps are already arranged in advance for coupling one to the other or to main other types of pumps available on fluid power market.
| Series/Model Code | Geometric Displacement (cm3/rev) | Max Flow Rateat 1450 rpm (l/min) | Max Operating Pressure (bar) |
|---|---|---|---|
| 02-PVS-2-40 | 40 | 58 | 100 |
| 02-PVS-2-50 | 50 | 73 | 100 |
| 02-PVS-3-63 | 63 | 91 | 80 |
| 02-PVS-3-80 | 80 | 116 | 80 |
| 02-PVS-3-100 | 100 | 145 | 80 |
