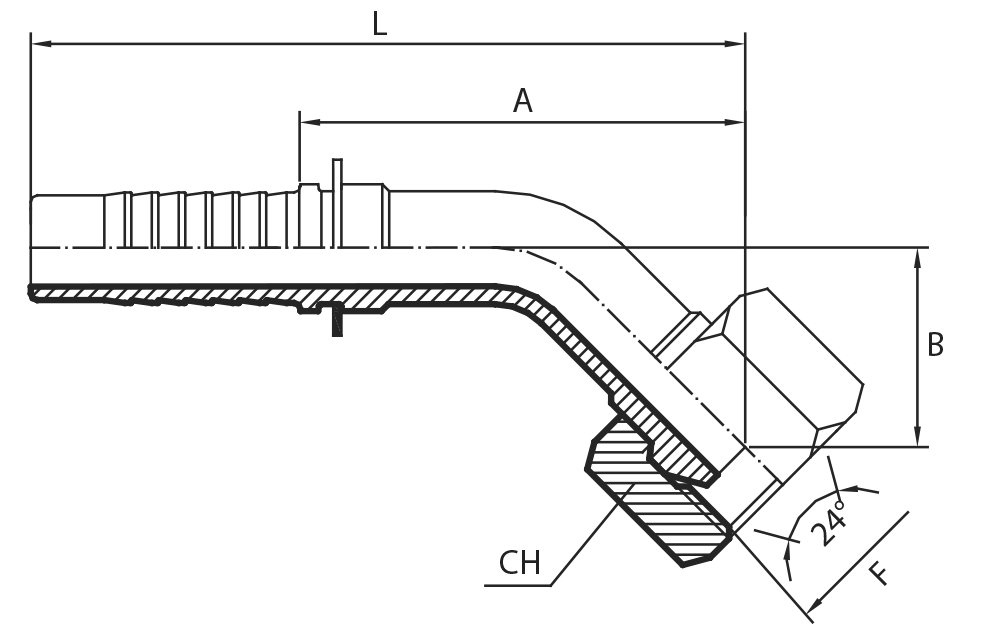

45° metric Female swept elbow 24° cone - French type


45° metric Female swept elbow 24° cone - French type
CODE DN INCHES DIAM D L
F45E0413F 6 1/4" 4 M20x1.5 50
F45E0513F 8 5/16" 5 M20x1.5 52
F45E0613F 10 3/8" 6 M20x1.5 58.5
F45E0617F 10 3/8" 6 M24x1.5 65.5
F45E0817F 12 1/2" 8 M24x1.5 68.5
F45E0821F 12 1/2" 8 M30x1.5 68
F45E1021F 16 5/8" 10 M30x1.5 68
F45E1221F 20 3/4" 12 M30x1.5 69
F45E1227F 20 3/4" 12 M36x1.5 73
F45E1633F 25 1" 16 M45x1.5 101
F45E2033F 32 1.1/4" 20 M45x1.5 107

* The figures and technical data set out in the tables are only intended as approximations.
