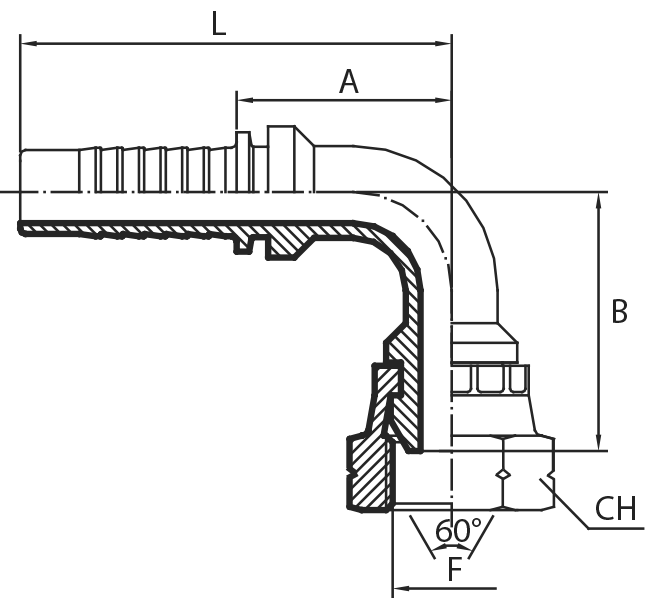

90° Metric Female swept elbow 60° cone


90° Metric Female swept elbow 60° cone
CODE DN INCHES DIAM D L
F90M0310 5 3/16" 3 M10x1 23
F90M0312 5 3/16" 3 M12x1.5 23
F90M0410 6 1/4" 4 M10x1 23
F90M0412 6 1/4" 4 M12x1.5 23
F90M0414 6 1/4" 4 M14x1.5 23
F90M0416 6 1/4" 4 M16x1.5 23
F90M0418 6 1/4" 4 M18x1.5 23
F90M0514 8 5/16" 5 M14x1.5 31.5
F90M0516 8 5/16" 5 M16x1.5 31.5
F90M0518 8 5/16" 5 M18x1.5 31.5
F90M0520 8 5/16" 5 M20x1.5 31.5
F90M0614 10 3/8" 6 M14x1.5 33
F90M0616 10 3/8" 6 M16x1.5 33
F90M0618 10 3/8" 6 M18x1.5 33
F90M0620 10 3/8" 6 M20x1.5 33
F90M0622 10 3/8" 6 M22x1.5 33
F90M0818 12 1/2" 8 M18x1.5 39
F90M0820 12 1/2" 8 M20x1.5 39
F90M0822 12 1/2" 8 M22x1.5 39
F90M0824 12 1/2" 8 M24x1.5 39
F90M0826 12 1/2" 8 M26x1.5 39
F90M1026 16 5/8" 10 M26x1.5 49
F90M1027 16 5/8" 10 M27x1.5 49
F90M1226 20 3/4" 12 M26x1.5 53.5
F90M1227 20 3/4" 12 M27x1.5 53.5
F90M1230 20 3/4" 12 M30x1.5 53.5
F90M1638 25 1" 16 M38x1.5 73
F90M2045 32 1.1/4" 20 M45x1.5 93
F90M2452 40 1.1/2" 24 M52x1.5 99

* The figures and technical data set out in the tables are only intended as approximations.
