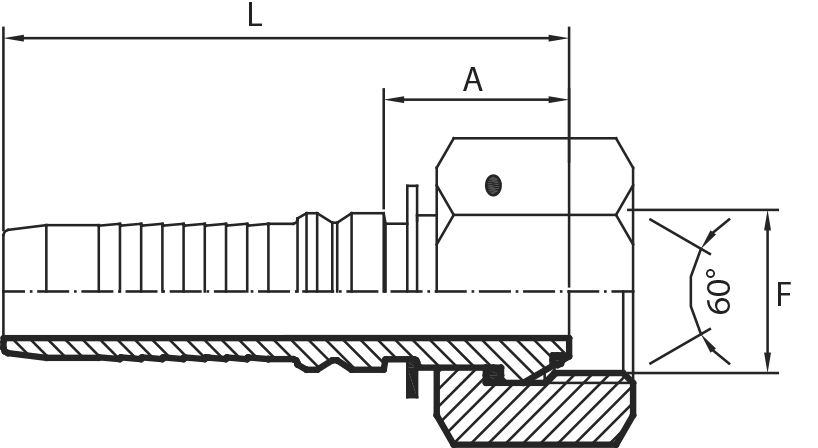

BSPP O-ring straight Female 60° cone (thrust-wire nut) - INTERLOCK


BSPP O-ring straight Female 60° cone (thrust-wire nut) - INTERLOCK
CODE DN INCHES DIAM D L
KFDG1212 20 3/4" 12 3/4" 14
KFDG1616 25 1" 16 1" 11
KFDG1620 25 1" 16 1.1/4" 11
KFDG2020 32 1.1/4" 20 1.1/4" 11
KFDG2424 40 1.1/2" 24 1.1/2" 11
KFDG3232 50 2" 32 2" 11

* The figures and technical data set out in the tables are only intended as approximations.
