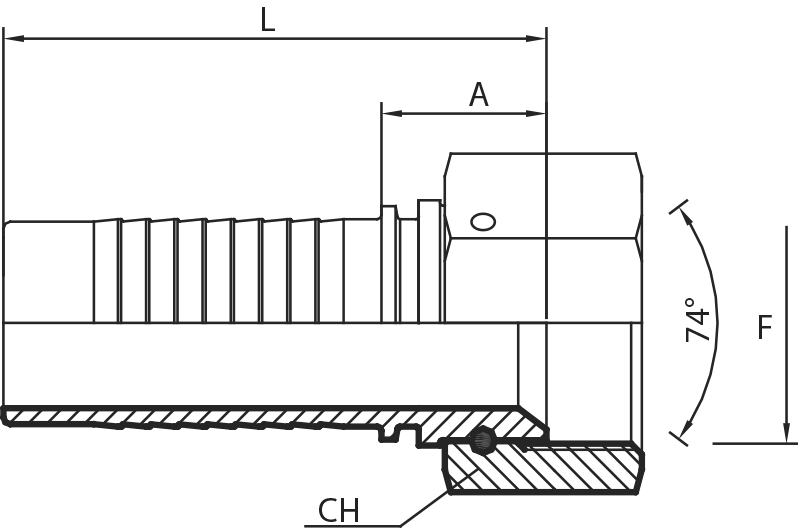

JIC straight Female 74° cone (thrust-wire nut)


JIC straight Female 74° cone (thrust-wire nut)
CODE DN INCHES DIAM D L
FDJ0304SP 5 3/16" 3 7/16" 20
FDJ0305SP 5 3/16" 3 1/2" 20
FDJ0404SP 6 1/4" 4 7/16" 20
FDJ0405SP 6 1/4" 4 1/2" 20
FDJ0406SP 6 1/4" 4 9/16" 18
FDJ0505SP 8 5/16" 5 1/2" 20
FDJ0506SP 8 5/16" 5 9/16" 18
FDJ0508SP 8 5/16" 5 3/4" 16
FDJ0606SP 10 3/8" 6 9/16" 18
FDJ0608SP 10 3/8" 6 3/4" 16
FDJ0610SP 10 3/8" 6 7/8" 14
FDJ0808SP 12 1/2" 8 3/4" 16
FDJ0810SP 12 1/2" 8 7/8" 14
FDJ0812SP 12 1/2" 8 1.1/16" 12
FDJ1010SP 16 5/8" 10 7/8" 14
FDJ1012SP 16 5/8" 10 1.1/16" 12
FDJ1210SP 20 3/4" 12 7/8" 14
FDJ1212SP 20 3/4" 12 1.1/16" 12
FDJ1216SP 20 3/4" 12 1.5/16" 12
FDJ1612SP 25 1" 16 1.1/16" 12
FDJ1616SP 25 1" 16 1.5/16" 12
FDJ1620SP 25 1" 16 1.5/8" 12
FDJ2020SP 32 1.1/4" 20 1.5/8" 12
FDJ2024SP 32 1.1/4" 20 1.7/8" 12
FDJ2424SP 40 1.1/2" 24 1.7/8" 12
FDJ2432SP 40 1.1/2" 24 2.1/2" 12
FDJ3232SP 50 2" 32 2.1/2" 12

* The figures and technical data set out in the tables are only intended as approximations.
