TEKNOSPIR 15 SAE 100 R15

Wire spiralled reinforced hoses for very high pressure power lines.

Operating temperature range:
From -40°C up to +120°C, with peak of +125°C.
Qualified fluids:
Mineral oils, vegetable and rapeseed oils, glycol and polyglicol oils, synthetic ester based oils, oils in aqueous emulsion, water.

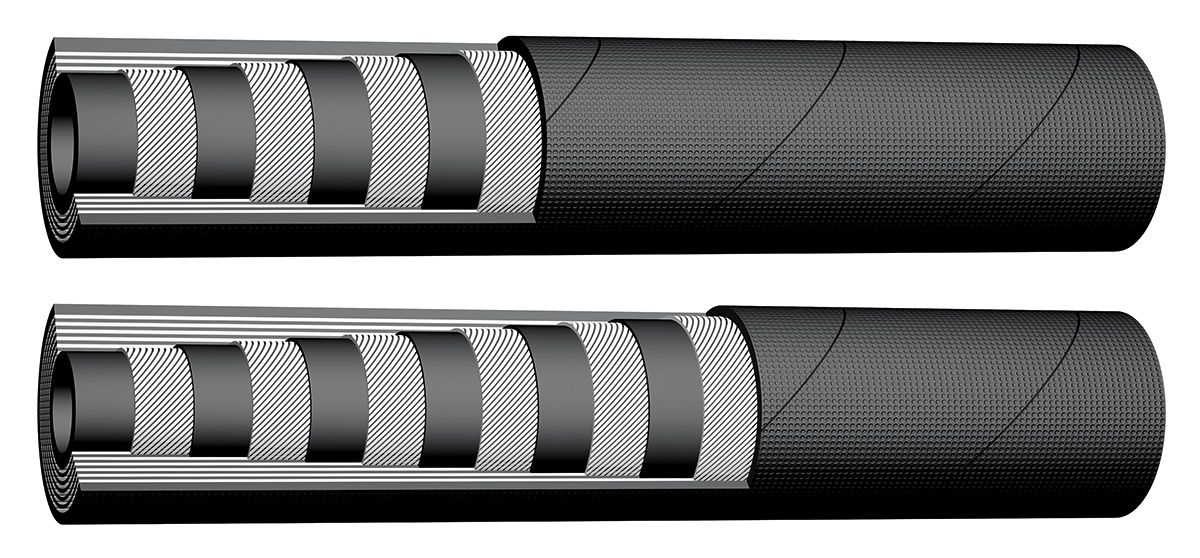

Tube
Oil resistant synthetic rubber.
Reinforcement:
Four high tensile steel spirals (DN 19÷25) six high tensile steel spirals (DN 31÷38).
Cover:
Black, oil and environment resistant synthetic rubber.

Product Codes:
TSR1512, TSR1516, TSR1520, TSR1524

TEKNOSPIR 15 - SAE 100 R15

Download Teknospir 15 catalogue
