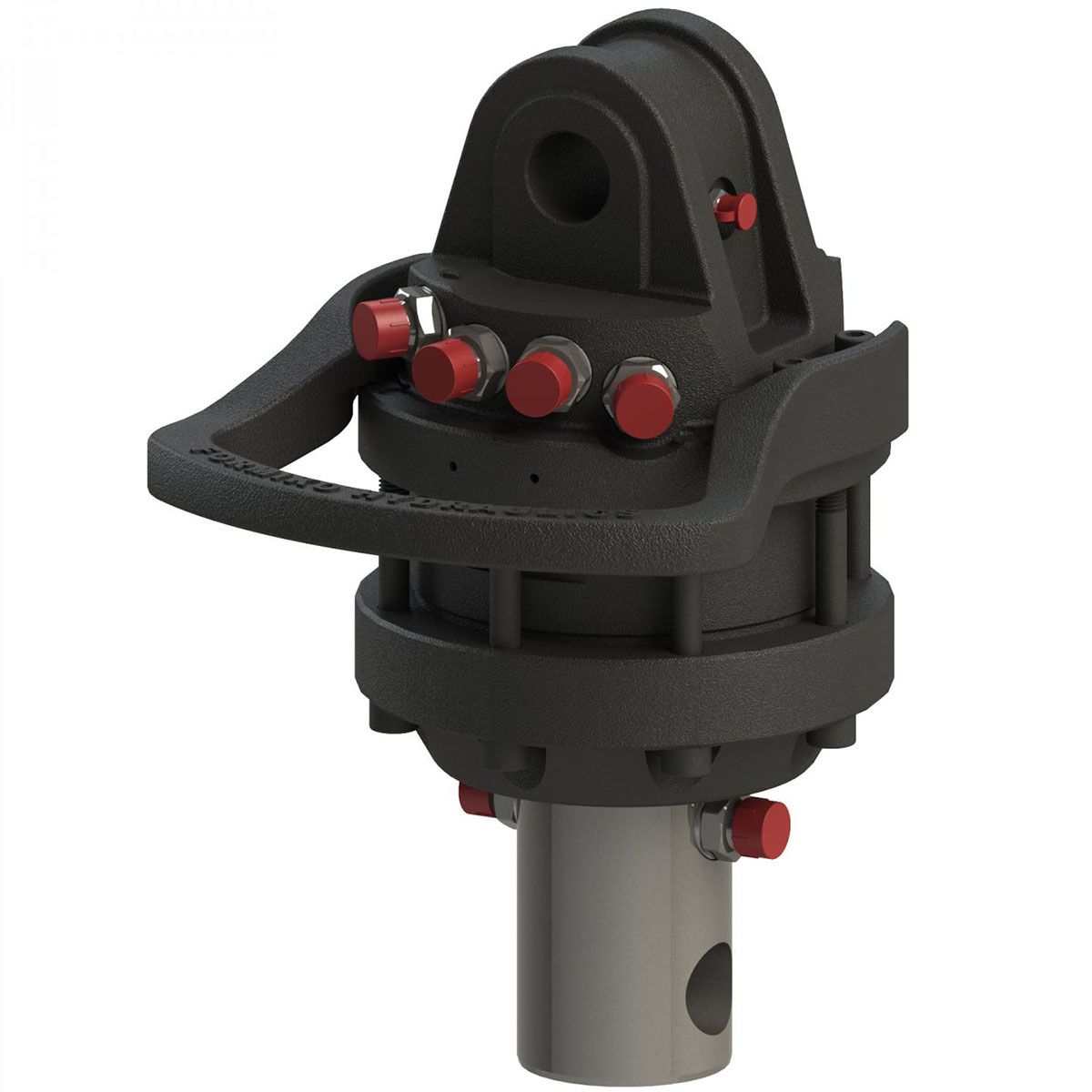

FHR 4.500L/68 Rotator for loads up to 4.5t

  • Max load static (tension loads) : 45 KN
  • Max load dynamic (tension loads) : 22.5 KN
  • Torque at 25MPa : 1300 Nm
  • Weight : 26 Kg
  • Recommended oilflow : 20 l/min

Applications

  • For forestry
  • For cargo and general material handing
  • For agriculture and farming
  • For road and building construction
FHR 4.500L/68 - Rotator for loads up to 4.5t

Download Data Sheet


Hydraulic rotator FHR 4.500L/68 is cost-effective solution generally for seasonal use in forestry, agriculture, road and building construction, general cargo and material handling.

Rotator's upper mount is applied in EYE form factor of the knuckle joint. Robust and tough built to withstand even overloads. The wide of eye is common standard width 73mm and the knuckle pin diameter 25mm.
Rotator lower mount is applied in AXLE form factor to mount in grapple / tool mounting tube or adaptor and by fixing with pin. Axle (shaft) diameter is 68mm and the fixing pin (not included) diameter 30mm
Rotator FHR 4.500L/68 based on reliable vane type hydraulic motor which delivers torque up to 1300Nm at 25MPa.
Formiko rotator FHR 4.500L/68 is compatible with FHL 01-A/B-73/25 and FHL 01B-A/B-73/25 series links.
Rotator for shipping is packed in compact solid cardboard box with dimensions 340x230x240mm.
We providing TWO year warranty for this rotator.
