FHR 4.500SF Rotator for loads up to 4.5t

  • Max load static (tension loads) : 45 KN
  • Max load dynamic (tension loads) : 22.5 KN
  • Torque at 25MPa : 1200 Nm
  • Weight : 30 Kg
  • Recommended oilflow : 20 l/min

Applications

  • For forestry
  • For cargo and general material handing
  • For agriculture and farming
FHR 4.500SF - Rotator for loads up to 4.5t

Download Data Sheet


Hydraulic rotator FHR 4.500SF is cost-effective solution generally for seasonal use in forestry, agriculture, general cargo and material handling.

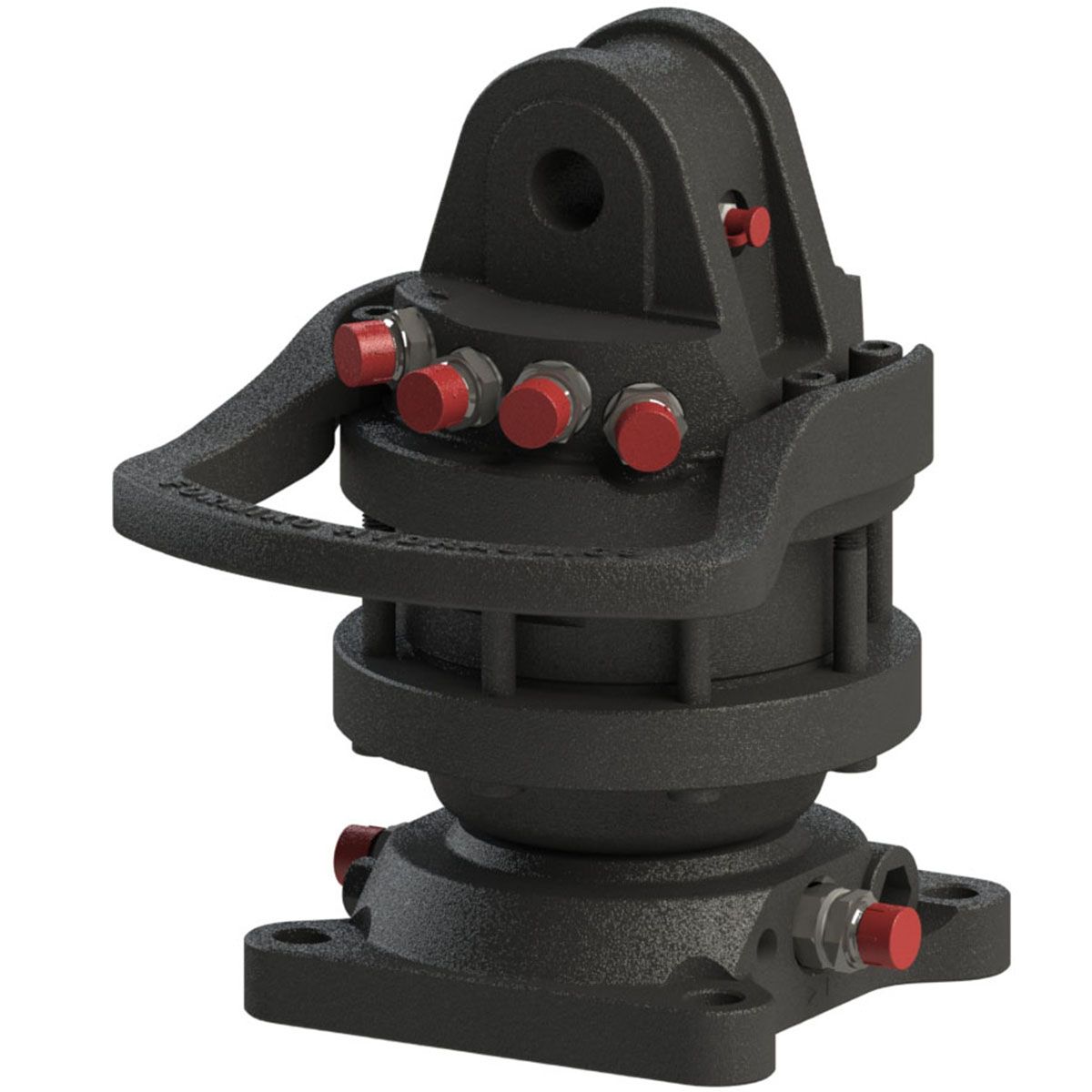

Rotator's upper mount is applied in EYE form factor of the knuckle joint. Robust and tough built to withstand even overloads. The wide of eye is common standard width 73mm and the knuckle pin diameter 25mm.
Rotator lower mount is applied in SQUARE shape FLANGE form factor to mount direct on grapple / tool surface by fixing with screws
Rotator FHR 4.500SF based on reliable vane type hydraulic motor which delivers torque up to 1200Nm at 25MPa.
Some parts in rotator are built from shock resistant and deformation resistant forged steel.
Formiko rotator FHR 4.500SF is compatible with FHL 01-A/B-73/25 and FHL 01B-A/B-73/25 series links.
Rotator for shipping is packed in compact solid cardboard box with dimensions 340x230x240mm.
We providing TWO year warranty for this rotator.
