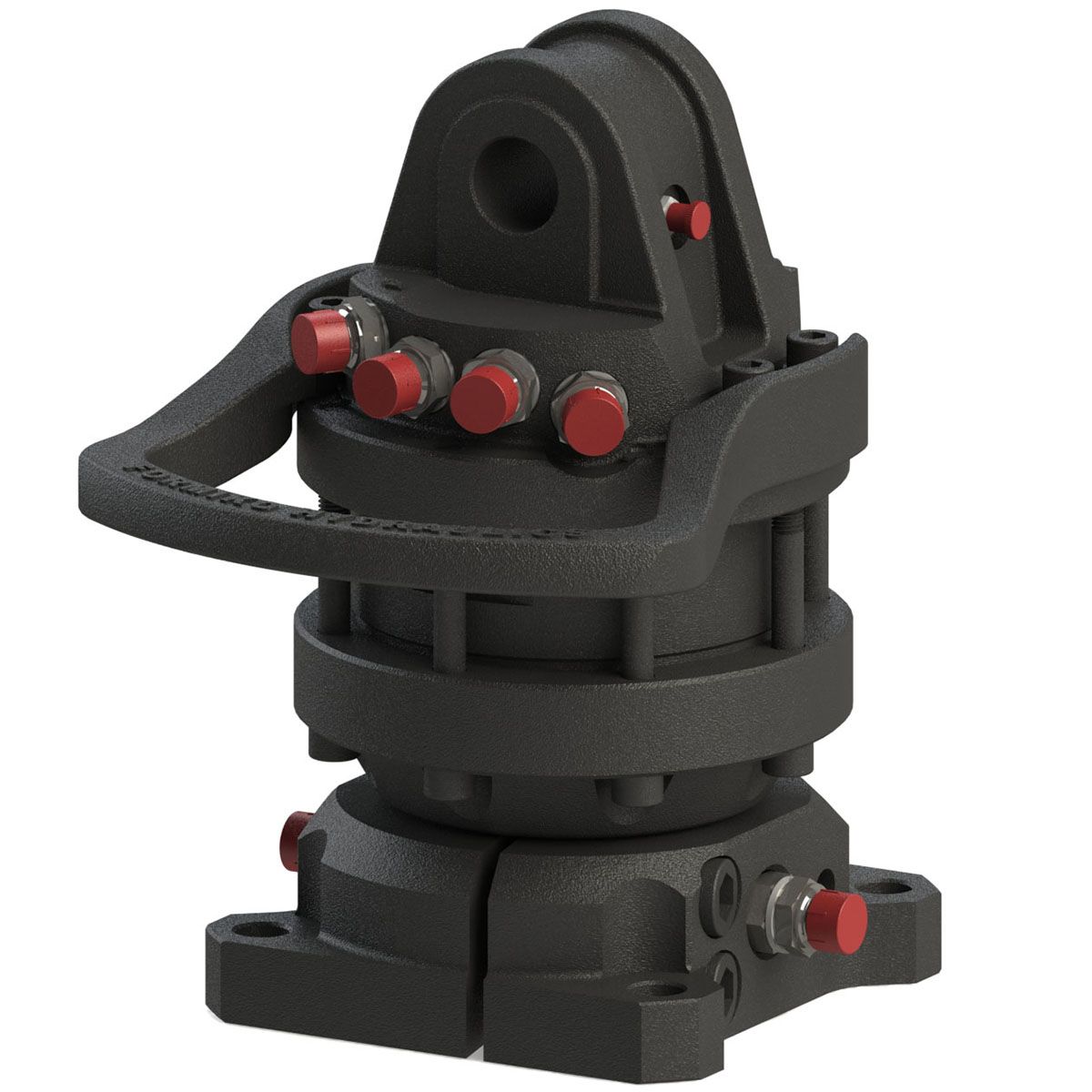

Rotator's upper mount is applied in EYE form factor of the knuckle joint. Robust and tough built to withstand even overloads. The wide of eye is common standard width 73mm and the knuckle pin diameter 30mm.
Rotator lower mount is applied in SQUARE shape FLANGE form factor to mount direct on grapple / tool surface by fixing with screws
Rotator FHR 4.500SF/68 based on reliable vane type hydraulic motor which delivers torque up to 1300Nm at 25MPa.
Formiko rotator FHR 4.500SF/68 is compatible with FHL 01-A/B-73/30 and FHL 01B-A/B-73/30 series links.
Rotator for shipping is packed in compact solid cardboard box with dimensions 340x230x240mm.
We providing TWO year warranty for this rotator.
