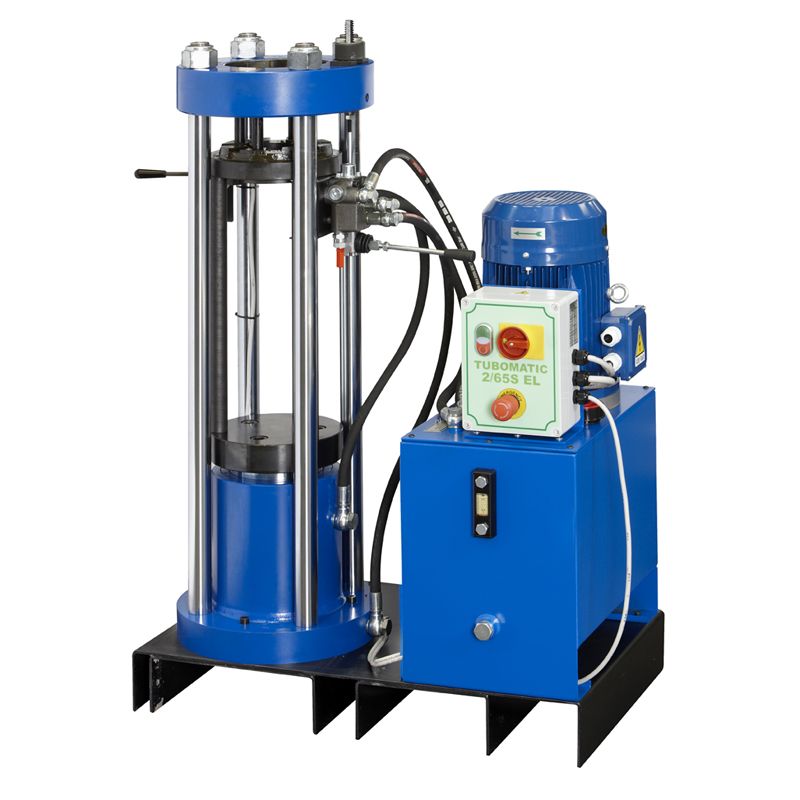

TUBOMATIC 2/65S EL / TUB265SEL
Tubomatic 265S EL is ideal for crimping hydraulic hoses up to 1" 1/2 six spirals and 2'' four spirals.
Main Features
- vertical working position;
- safety dies lever;
- power pack included.
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 260 TON (285 US TONS) |
| 6 SPIRALS 2 PIECES | 1''1/2 |
| 4 SPIRALS | 2'' |
| 2 BRAIDS | 2'' |
| MAXIMUM CRIMPING Diam. | 82 mm (3.228'') |
| CRIMPING / HOUR | 430 |
| DIE OPENING | Ø + 33 mm (Ø + 1.299'') |
| MAX. OPENING WITHOUT DIES | 110 mm (4.331'') |
| STANDARD VOLTAGE | 400V 50HZ 3PH |
| MOTOR POWER | 4 Kw (5.5 Hp) |
| DIMENSIONS L x W x H | 900x500x1170 mm (35.433''x19.685''x46.063'') |
| WEIGHT WITHOUT OIL | 340 KG (750 Lbs) |
| OIL | 35 Lt. incl. |
| MARKING DIES | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
