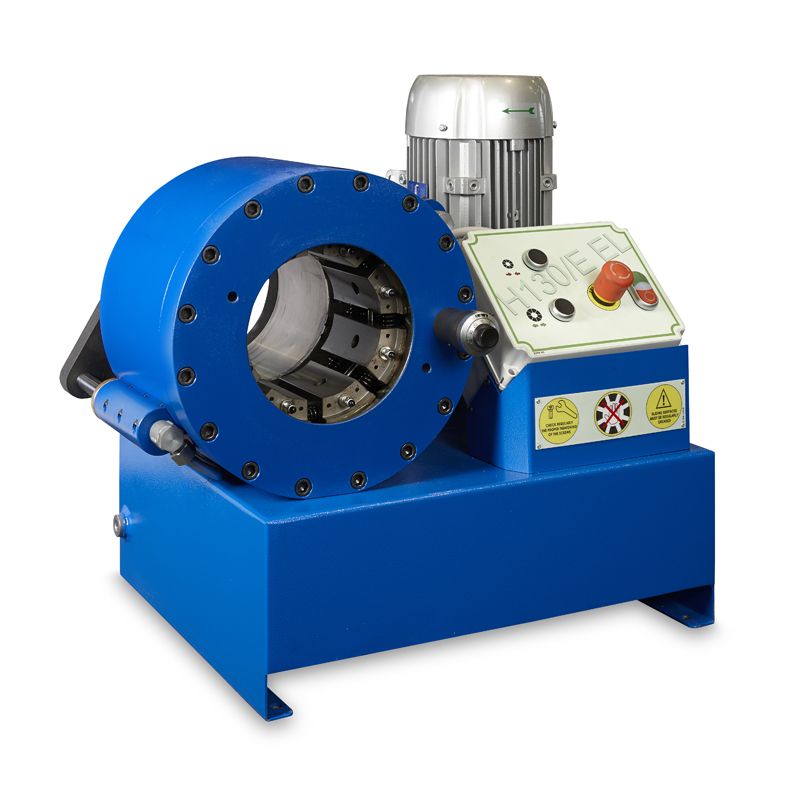

TUBOMATIC H130/EEL / TUBH130/EEL

Tubomatic H130/E EL is ideal for crimping hydraulic hoses up to 2" four spirals two pieces.

Main Features

  • ideal for crimping ant type of fitting.

Product specifications could be modified without prior notice.

Technical Specifications

Crimping Dies

TUBOMATIC H130/EEL

6 SPIRALS 2 PIECES 1''
4 SP 2 PIECES 2''
INDUSTRIAL HOSE 2 PIECES 3''
CRIMPING FORCE 190 TON (210 US TONS)
MAXIMUM CRIMPING Diam. 113 mm (4.448'')
CRIMPING/HOUR 378
DIE OPENING Ø + 35 mm (Ø + 1.378'')
90 FITTINGS 2''
STANDARD VOLTAGE 375V - 420V - 50HZ 3PH
MOTOR POWER 2,2 Kw (2.9 Hp)
DIMENSIONS L x W x H 665x560x625 mm (26.181''x22.047''x26.606'')
WEIGHT WITHOUT OIL 167 Kg (369 lbs)
VERNIER DIAL incl.
OIL 25 Lt non incl.
DISPENSER + QUICK CHANGE OPTIONAL
BASE OPTIONAL
ELECTRIC PEDAL OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
