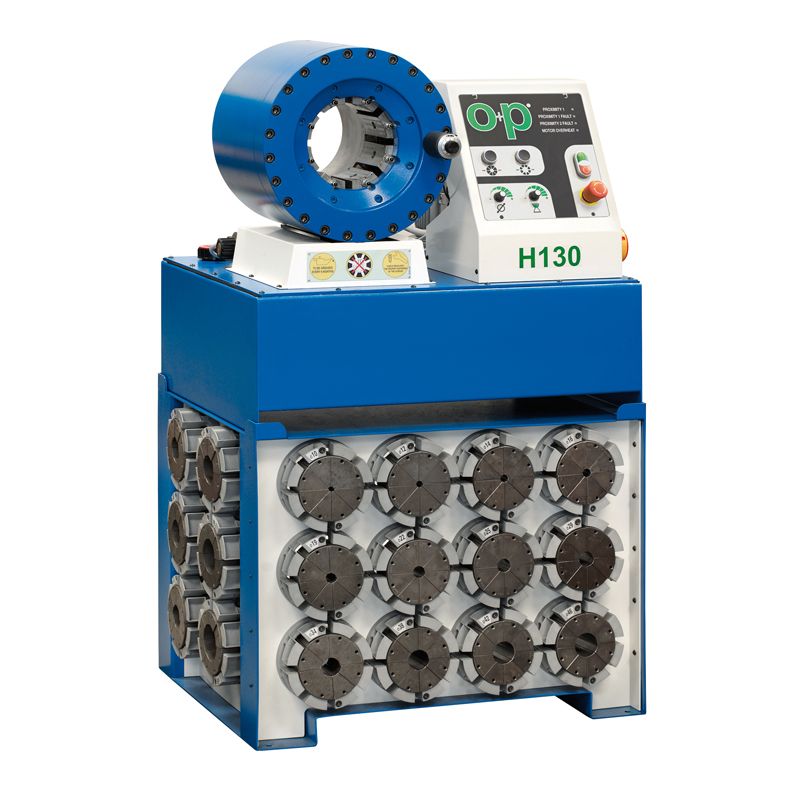

TUBOMATIC H130 EL / TUBH130EL

Tubomatic H130 EL is ideal for crimping hydraulic hoses up to 1" 1/4 six spirals and up to 2" four spirals.

Main Features

  • ideal for crimping any type of fitting;
  • new electronic device for managing the new electro-mechanical panel;
  • warning LED for possible anomalies in the system;
  • settable re-opening time after crimping;
  • settable crimping time.

Product specifications could be modified without prior notice.

TUBOMATIC H130 EL


CRIMPING FORCE 190 TON (210 US TONS)
6 SPIRALS 2 PIECES 1''1/4
4 SP 2 PIECES 2''
INDUSTRIAL HOSE 2 PIECES 3''
MAX Diam. 124 mm* (4.881'')
CRIMPING / HOUR 780
DIE OPENING Ø + 35 mm (Ø + 1.378'')
90 FITTINGS 2
STANDARD VOLTAGE 375V-420V 50HZ 3PH
MOTOR POWER 4 Kw (5,5 Hp)
DIMENSIONS L x W x H 760x675x715 mm (29.921''x26.575''x28.149'')
WEIGHT WITHOUT OIL 295 Kg (650 Lbs)
OIL 65 lt.
ELECTROMECHANICAL CONTROL BY ELECTRONIC CARD incl.
VERNIER DIAL incl.
BASE + QUICK CHANGE DIE SYSTEM OPTIONAL
BASE OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
CLEANING AND MAINTENANCE KIT OPTIONAL
SPECIAL VOLTAGE OPTIONAL
ELECTRIC PEDAL OPTIONAL
MIRROR OPTIONAL
