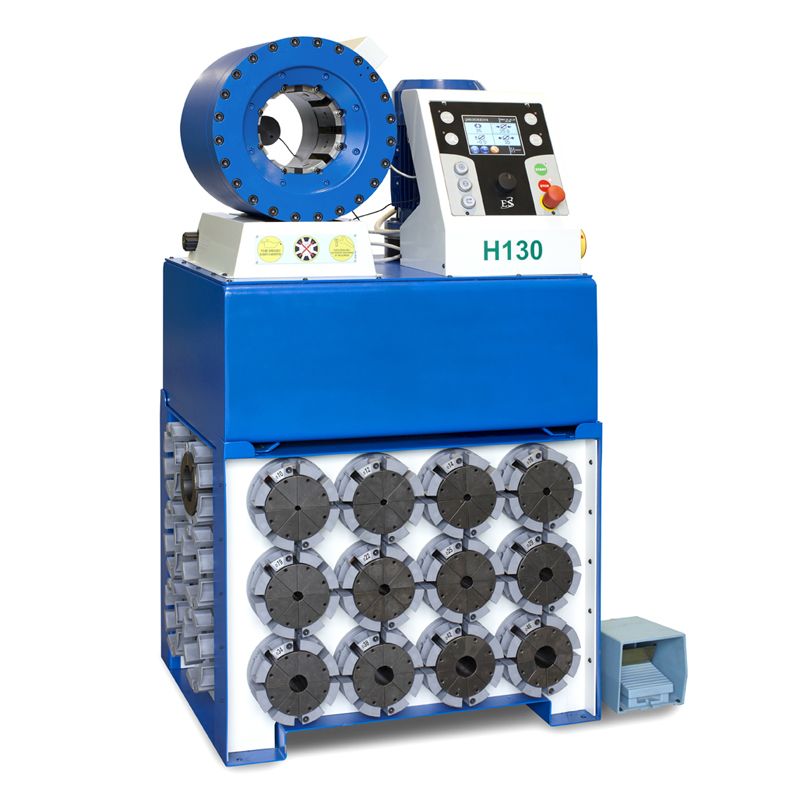

TUBOMATIC H130 ES / TUBH130ES
Tubomatic H130 ES is ideal for crimping hydraulic hoses up to 1" 1/4 six spirals and up to 2" four spirals.
Main Features
- ideal for crimping any type of fitting;
- ES3 Siemens PLC control with 5,7'' color touch-screen display;
- back limit switch.
Product specifications could be modified without prior notice.
| CRIMPING FORCE | 190 TON (210 US TONS) |
| 6 SPIRALS 2 PIECES | 1''1/4 |
| 4 SP 2 PIECES | 2'' |
| INDUSTRIAL HOSE 2 PIECES | 3'' |
| MAX Diam. | 130 mm* (5.118'') |
| CRIMPING/HOUR | 780 |
| DIE OPENING | Ø + 35 mm (Ø + 1.378'') |
| 90 FITTINGS | 2 |
| STANDARD VOLTAGE | 375V-420V 50HZ 3PH |
| MOTOR POWER | 4 Kw (5,5 Hp) |
| DIMENSIONS L x W x H | 760x690x730 mm (29.921''x27.165''x28.740'') |
| WEIGHT WITHOUT OIL | 295 Kg (650 Lbs) |
| OIL | 65 lt. |
| ELECTROMECHANICAL CONTROL BY ELECTRONIC CARD | incl. |
| BACK LIMIT SWITCH | incl. |
| SPEED CONTROL SYSTEM | OPTIONAL |
| PRESSURE KIT | OPTIONAL |
| QUALITY CHECK | OPTIONAL |
| MULTISTEP | OPTIONAL |
| BASE + QUICK CHANGE DIE SYSTEM | OPTIONAL |
| BASE | OPTIONAL |
| MARKING DIES | OPTIONAL |
| SPECIAL DIES | OPTIONAL |
| CLEANING AND MAINTENANCE KIT | OPTIONAL |
| SPECIAL VOLTAGE | OPTIONAL |
| DATA TRANSFER KIT | OPTIONAL |
| ELECTRIC PEDAL | OPTIONAL |
| MIRROR | OPTIONAL |
| CRIMPING SPEED | OPTIONAL |
