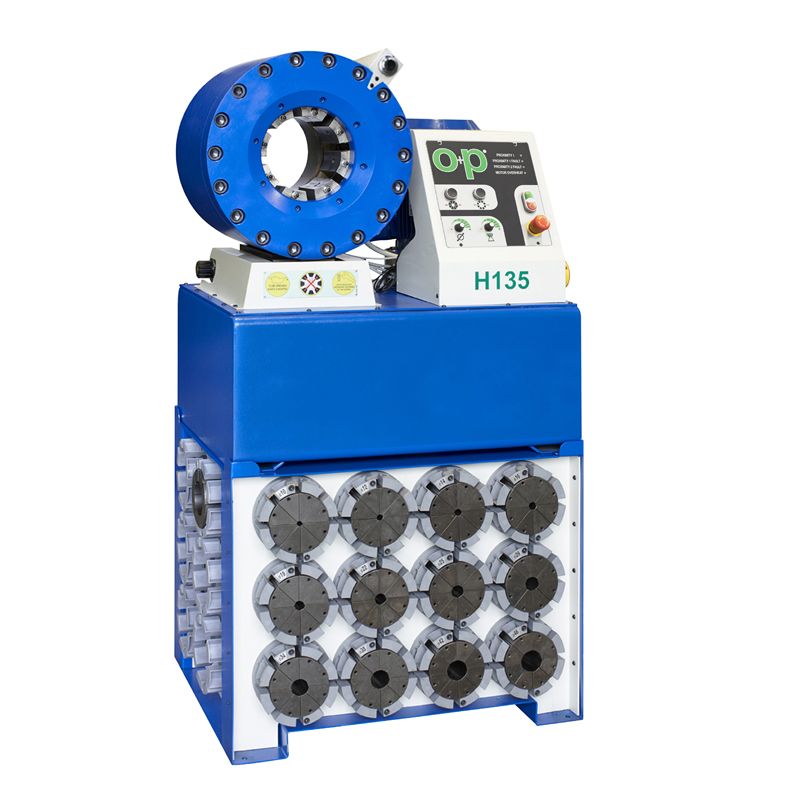

TUBOMATIC H135 EL / TUBH135EL

Tubomatic H135 EL is ideal for crimping hydraulic hoses up to 2" six spirals and up to 3" industrial hose.

Main Features

  • ideal for crimping any type of fitting;
  • electronic device for managing the new electromechanical panel;
  • warning LED for possible anomalies in the system;
  • settable re-opening time after crimping;
  • settable crimping time.

Product specifications could be modified without prior notice.

TUBOMATIC H135 EL


CRIMPING FORCE 315 TON (345 US TONS)
6 SPIRALS 2''
INDUSTRIAL HOSE 3''
CRIMPING/HOUR 1110
DIE OPENING Ø + 43 mm (Ø + 1.693 '')
90 FITTINGS 2''
STANDARD VOLTAGE 375V-420V 50HZ 3PH
MOTOR POWER 5,5 Kw (7.5 Hp) A=10,64
DIMENSIONS L x W x H 810x615x850 mm (31.890''x24.213''x33.464'')
WEIGHT WITHOUT OIL 450 Kg (990 Lbs)
OIL 110 lt.
ELECTROMECHANICAL CONTROL BY ELECTRONIC CARD incl.
VERNIER DIAL incl.
BASE OPTIONAL
MARKING DIES OPTIONAL
SPECIAL DIES OPTIONAL
SPECIAL VOLTAGE OPTIONAL
BASE + QUICK CHANGE DIE SYSTEM OPTIONAL
CLEANING AND MAINTENANCE KIT OPTIONAL
ELECTRIC PEDAL OPTIONAL
MIRROR OPTIONAL
